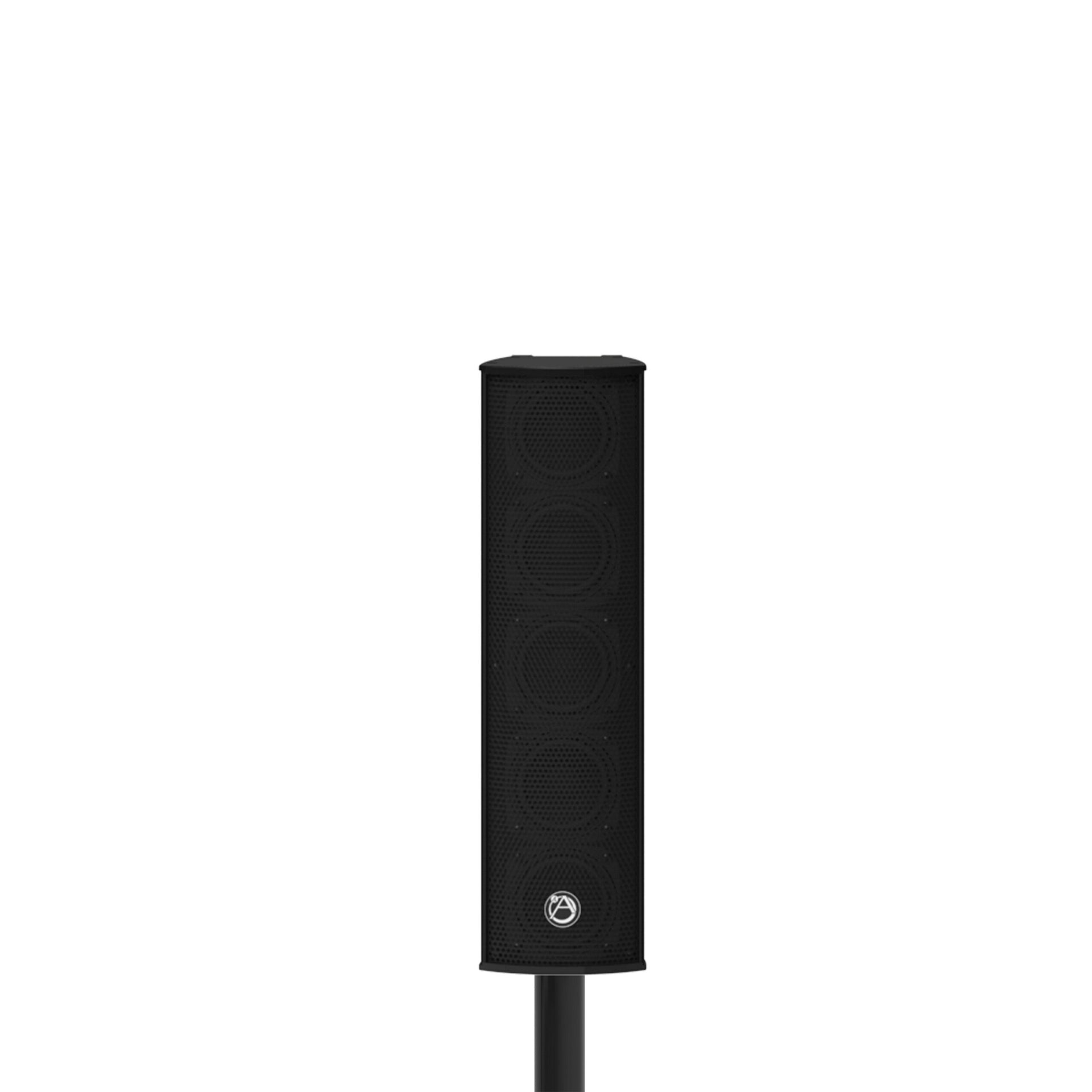

Atlas Sound ALA5T-B Full Range Line Array 5 Speaker System, Black
$593.99
Atlas Sound ALA5T-B Full Range Line Array 5 Speaker System, Black
The ultra-compact ALA5T-B column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5T-B’s transducer configuration combines five tight packed 3″ full range drivers and two 3/4″ high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.
Key Features
70.7V or 8 Operation
Mounting System Included
Five Proprietary 3″ Full Range Drivers
Two High-Frequency Tweeters
45 Vertical Coverage
135 Horizontal Coverage
Barrier Strip and NL-4 Terminals
Lightweight Aluminum Housing
Technical Specifications
8 RMS POWER 125 Watts 70.7V POWER TAPS 7.5, 15, 30, & 60 Watts DISPERSION 135 H x 45 V SENSITIVITY 92dB 1W/1m FREQUENCY RESPONSE 125Hz – 20kHz HEIGHT 16.61″ (422mm) DEPTH 5.43″ (137.9mm) WIDTH 4.61″ (117mm)
