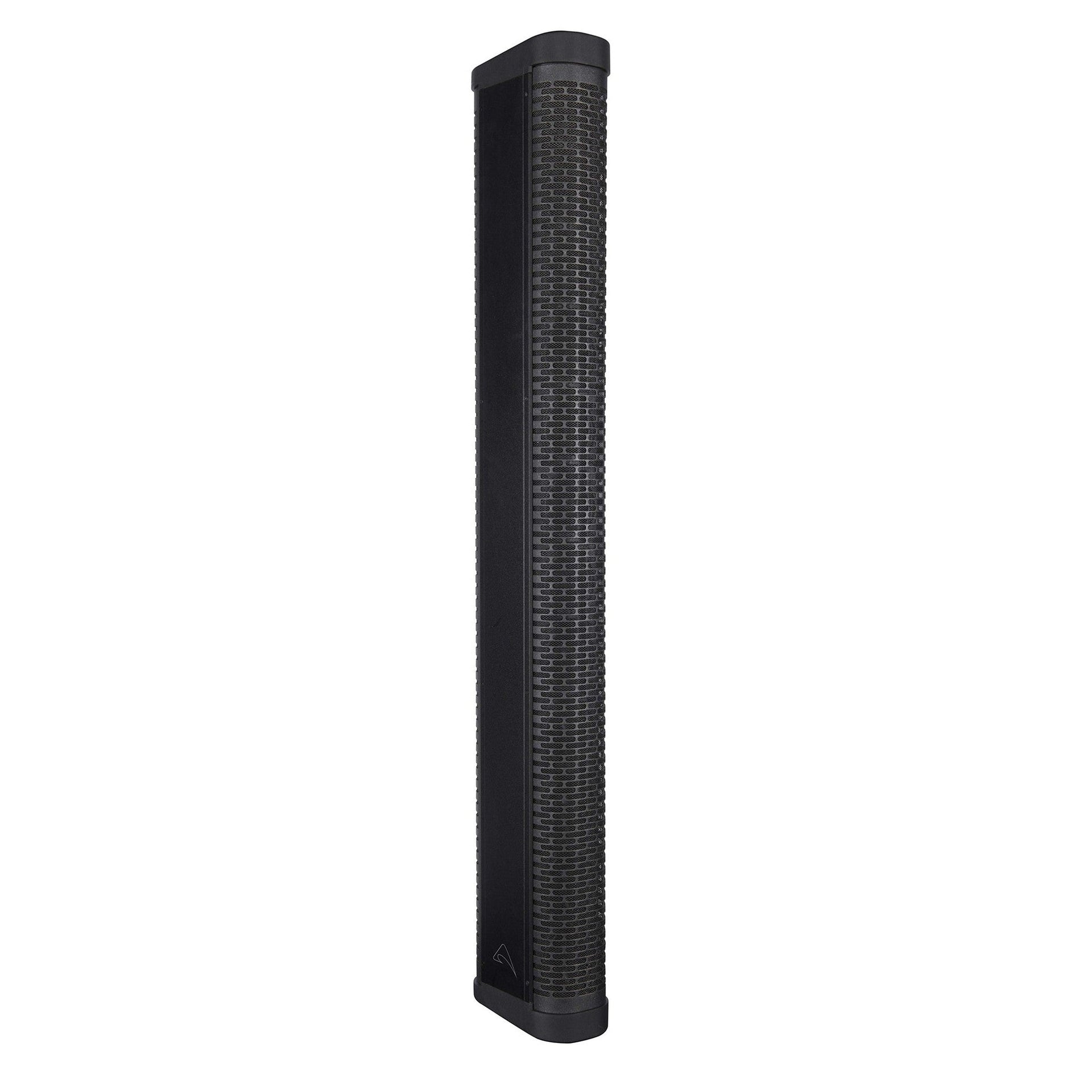

Axiom AX12C 12 x 3.5-Inch High-Power Passive Portable Line Array Element Speaker

Axiom AX12C 12 x 3.5-Inch High-Power Passive Portable Line Array Element Speaker
The AX12C Line Array is a passive system equipped with twelve 3.5” neodymium transducers with waterproof cones, designed for portable and permanently installed applications where high power and clarity are needed. The aluminum frame box structure ensures lightweight and strength, while the shape features a back-loaded transmission line design with clean mid-bass reproduction and natural cardioid behavior. A Front Diffraction Waveguide (FDW) delivers wide horizontal dispersion, making the system flexible and adaptable to many different applications.
The AX12C line array module has been designed to be combined with the SW2100A, a compact and lightweight 21” Band-Pass/Bass-Reflex subwoofer, equipped with a 4000W Class D amplifier with Power Factor Correction and PROEL’s proprietary 96kHz / 40bit floating point CORE DSP. Up to four AX12C modules can be driven by one amplifier channel of the SW2100A subwoofer. The built-in CORE DSP, which can be also remotely controlled using PRONET AX software, provides 4 presets for different combinations: 2, 4 or 1 columns plus 1 user preset.
The standard system, composed of four AX12C line array modules and two SW2100A subwoofers, features 8000W of total power and a line-array dispersion pattern, making it the perfect solution for high-performance portable sound reinforcement applications.
Thanks to the elegant mechanical design the AX12C can be easily transported, while the integrated suspension system makes its deployment very fast and simple. Each unit comes with two aluminum brackets and four pins that allows multiple array elements to be easily combined either together or with the matching SW2100A subwoofer. The brackets allow two inter-cabinet angles of 0° and 2°.
Key Features
High Power passive portable Line Array element
12 x 3.5” neodymium transducers with waterproof cones
360W continuous power – 720W program power
Line Array dispersion characteristics
Acoustic transmission line back loading design, resulting in clean mid-bass reproduction and natural cardioid behavior
Wide horizontal dispersion through Front Diffraction Waveguide (FDW)
Fast, easy-to-use integrated suspension system
Aluminum frame structure
Designed for mobile and installed applications
Black or white finish
Technical Specifications
SYSTEM
System’s Acoustic Principle
Line Array Element
Short Transmission Line Back Loading
Acoustic Diffractor
Frequency Response (-6dB)
180 Hz – 16 KHz (Processed)
Nominal Impedance
16 Ohm
Horizontal Coverage Angle
100°
Sensitivity (4V)
105 dB SPL @ 1m*
Maximum (peak) SPL
130 dB SPL @ 1m*
TRANSDUCERS
Type
12 x 3.5” (88mm) Neodymium magnet woofers, 1” (25mm) VC
Cone
Waterproof Cone
Voice Coil Type
Ventilated voice coil
INPUT CONNECTIONS
Connector Type
Neutrik Speakon NL4 x 2 (1+/1- signal IN & LINK; 2+/2- thru)
POWER HANDLING
Continuous AES Pink Noise Power
360 W
Program Power
720 W
ENCLOSURE & CONSTRUCTION
Width
107 mm (4.2”)
Height
1166 mm (45.9”) – without flying system
1212 mm (47.7”) – with flying system
Depth
193 mm (7.6”)
Enclosure Material
Aluminum
Finishing
Black anodization, black epoxy paint
Flying system
Aluminum Fast Link structure with dedicated pins
Net Weight
13 kg (28.6 lbs.)
