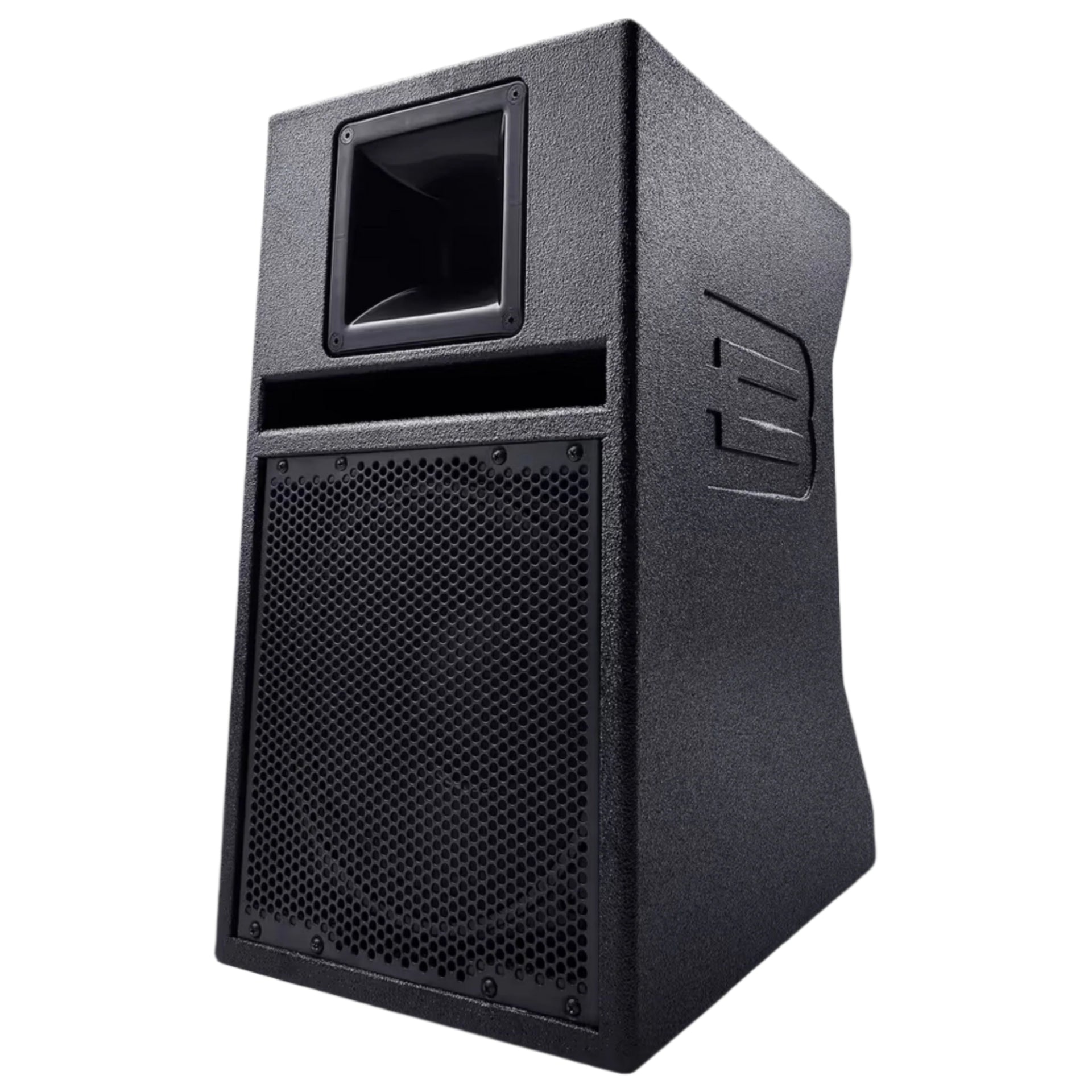

BASSBOSS SV9-MK3 2-Way 1200W Single 9-Inch Powered Full Range Speaker

BASSBOSS SV9-MK3 2-Way 1200W Single 9-Inch Powered Full Range Speaker
Revolutionize Your Sound with BASSBOSS Studio Quality Speakers
The BASSBOSS SV9-MK3 2-Way 1200W Single 9-Inch Powered Full Range Speaker combines studio-quality sound with the elegance of compact, portable speakers. Whether you’re a professional DJ, a sound engineer, or an audiophile, this speaker is designed to meet all your audio needs with precision and power.
Let Your Music Shine
BASSBOSS has meticulously engineered a custom woofer with a carbon-fiber cone, rubber surround, and larger voice coil, all housed within a solid wooden cabinet. This construction ensures reference-grade sound quality, regardless of your location. Ideal for those who demand nothing but the best, this speaker is a perfect choice for mobile setups where premium audio quality is essential.
Premium Sound, Everywhere
Whether you need reference monitors on-the-go or ultra-compact production speakers, BASSBOSS has you covered. These speakers are designed to deliver consistent, high-quality sound for hours on end. Additionally, they are lightweight and easy to transport, making them ideal for professionals always on the move.
MK3 Amp and DSP Update
The MK3 series boasts increased total power and a new 96kHz Digital Signal Processor (DSP). The updated amp allocates more power to the woofers for a more impactful sound. Universal input voltage compatibility (90-250V) and waterproof connections ensure that you can use these speakers anywhere with peace of mind. The DSP now supports up to 100 presets and advanced processing capabilities, offering meticulously tuned equalization, filters, and multiple protection systems.
Key Features
High-resolution 96kHz DSP for superior audio processing
Increased pushbutton presets from 4 to 8, with storage capability for up to 100 presets
Integrated suite of processing options including finely tuned EQ, high-pass and low-pass filters
Multiple protection systems and limiters to prevent driver overload
1200 Watts of Class D power for robust performance
Single 9” self-powered, vented, direct-radiating full-range transducer
Custom woofer with 9” neodymium motor, 2.5” copper winding voice coil, and carbon-fiber cone
Specifications
Loudspeaker Type: 2-way active, Single 9” Self-Powered, Vented, Direct-radiating Full-range
Frequency Response: 50 – 19,000Hz (±3 dB)
Maximum Sustained Output: 118dB
Max SPL (Peak): 121 dB
Nominal Dispersion: 90 x 60 (Rotatable)
Amplification: 1200 Watts Class D
Processing: Integrated comprehensive DSP, 96kHz sampling rate
Electrical Connectors (Amp): Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector (Mains): Standard US 3-pin grounding 120V electrical plug (NEMA 5-15)
Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto-switching universal supply)
Current Draw 120V: 1.4 Amps (Nominal)
Current Draw 240V: 0.7 Amps (Nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M (direct pass-through only)
Enclosure Type: 2-way full-range/mid-high
Transducer Low Frequency: 1 x 9 in. diameter neodymium motor woofer with 2.5 in. copper winding voice coil and carbon-fiber cone
Transducer High Frequency: 1.5 in. diaphragm compression driver on 1 in. throat, 90 x 60 degree constant directivity horn
Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery
Exterior Finish: High-pressure, bonded polyurea coating which is rugged and waterproof
Grille: Perforated, powder-coated steel
Dimensions: 18 in. x 10 in. front, 7 in. rear, x 15 in.
Net Weight: 26 lbs
Shipping Weight: 31 lbs
Package Contents
Loudspeaker
15′ Power Cable
Manual
Warranty Card
