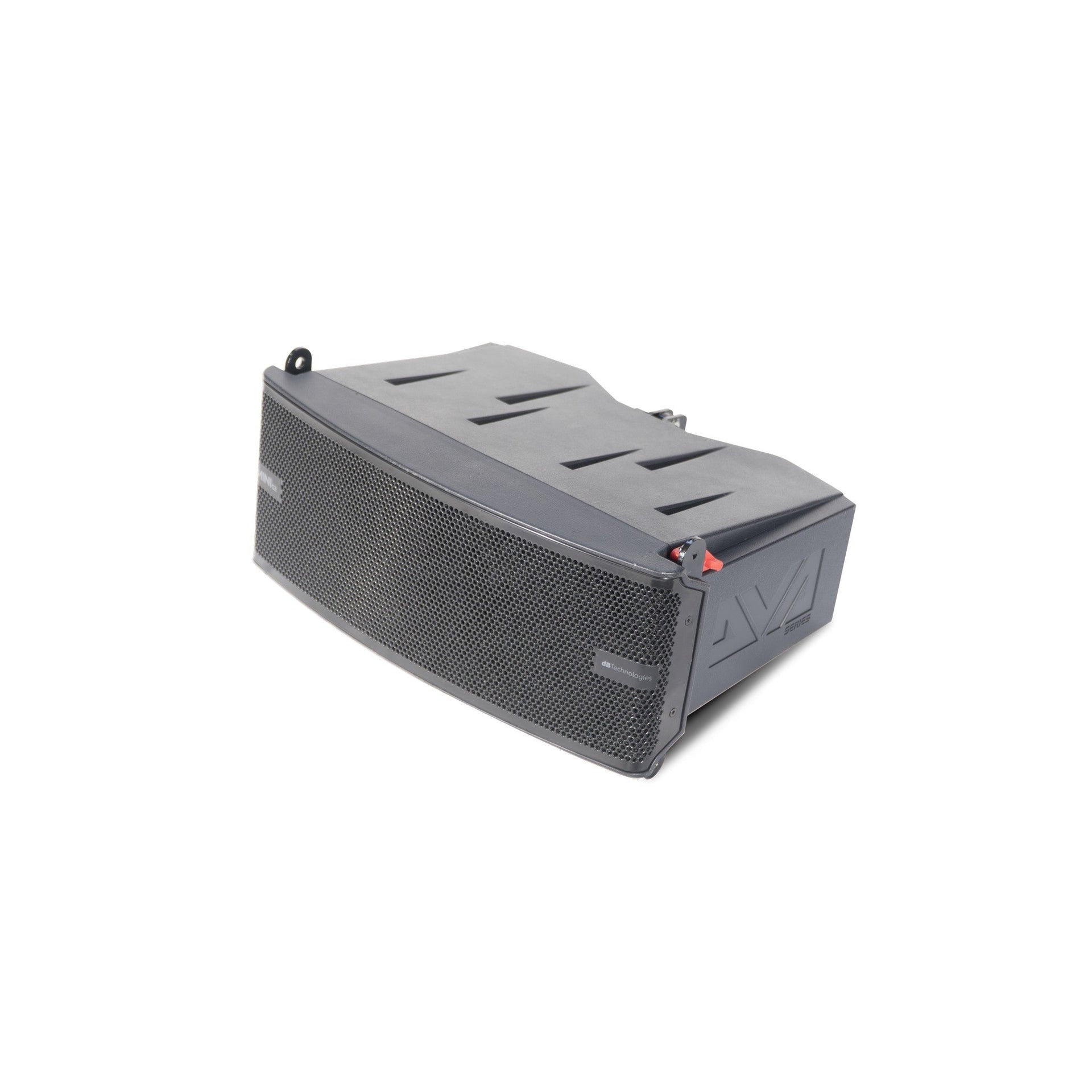

dB Technologies DVA MINI G2 2 x 6.5-Inch 2-Way Small Format Active Line Array Speaker

dB Technologies DVA MINI G2 2 x 6.5-Inch 2-Way Small Format Active Line Array Speaker
Enhancing ease of use as well as versatility thanks to complete network capability, DVA MINI G2 provides stunning power and sound pressure in an extraordinary lightweight and compact enclosure.
Each element is equipped with 2×6.5” neodymium woofers and 2×1” high-frequency neodymium compression drivers and driven by a Class D Digipro G3 amp module providing 400 W RMS. The system can reach an impressive 131-dB-per-unit sound pressure level.
The system’s advanced sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.
DVA MINI also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use. Nevertheless, the on-board 1 rotary provides for 7 different presets to adapt the system to basic applications.
An integrated quick-lock system links enclosures by simply placing one module below a companion module and sliding it towards one side until it locks in place. The rigging hardware is on the rear of every cabinet allowing for incremental steps for line array positioning. Extra-light DRK M5 fly-bar easily allows a fast rigging while DSF M2 accessory enables the system to be stacked on a standard pole.
The cabinets are constructed of reinforced polypropylene packing extra power in compact dimensions (460x190x345 mm) and feather-weight (only 8.4 kg per module)
Key Features
Extra compact line array system
Complete network capability via Aurora Net
131 dB SPL per module
Neodymium components
Linear phase FIR filters
Fast and easy set up with integrated quick lock system
Extra lightweight
Technical Specifications
Acoustical data Usable Bandwidth 75 – 20.000 Hz Frequency Response 80 – 19.000 Hz Max SPL 131 dB per unit HF 2x 0.75” Type HF Neodymium Voice Coil HF 1” LF 2x 6.5” Type LF Neodymium Voice Coil LF 1.75” Directivity (HxV) 15 x 100 Degrees Amplifier Amp Technology Digipro G3 Amp Class Class D RMS Power Amp 400 W Cooling Convection Processor Controller DSP 56 bit AD/DA Converter 24 bit/48 kHz Controls 1x Rotary Encoder (8 presets) Limiter Multiband, RMS/Peak, Thermal Crossover Frequency LF-HF 1900 Hz Slope LF-HF 24 dB/Octave Advanced DSP functions Linear Phase FIR Filters Input Signal Input 1x XLR fem, Bal. Signal Output 1x XLR male, Bal. Power Supply 400W SMPS with PSU Auto-range (110V~ and 220V~) Power Socket 1x PowerConTRUE1 In 1x PowerConTRUE1 Out Mechanics Housing Polypropylen PP Handles 2x back side Fittings Integrated hardware with fast lock mechanics Width 460 mm (18.1 in) Height 190 mm (7.5 in) Depth 345 mm (13.6 in) Weight 8.4 kg (18.5 lbs)
