dB Technologies DVA MS12 12-Inch 700W 2-Way Active Line Array Speaker
$1,883.00

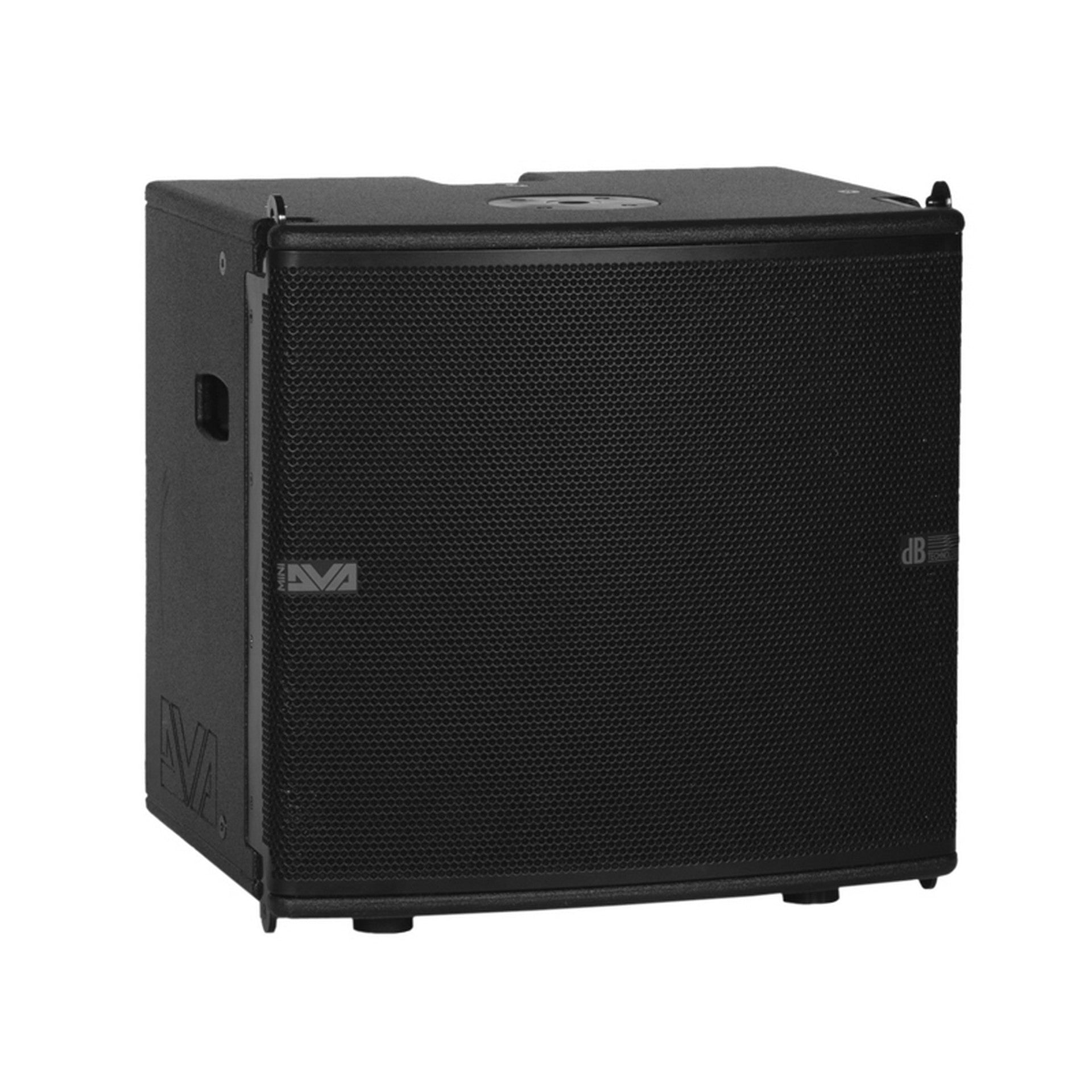

dB Technologies DVA MS12 12-Inch 700W 2-Way Active Line Array Speaker
This subwoofer delivers an incredible SPL considering its very compact dimensions, and it can be easily used both flown and ground stacked.
The smart design of the feet allows the user to avoid the dull removal of the flying brackets: it is possible to remove the feet in few seconds and screw them again upside-down. In this way any contact between the flying brackets and the ground is avoided, as only the rubber feet will touch it. A practical X-over out can be used to feed signal straight to the line arrays modules, simplifying considerably the signal and power cabling.
DVA MS12 comes with the new generation of exclusive digital amplifiers Digipro G3, engineered by dB Technologies and distinguished by an exceptionally lightweight design and a very remarkable efficiency.
An integrated USB B-type port on the DVA MS12 amplifier allows the user to access the complete telemetry of the sub, monitoring the status of the speaker, including total playing hours, temperatures and performances reports.
Key Features
Active Bass Reflex Subwoofer
Flyable
Integrated Hardware with Innovative Quick-Lock Mechanics
Lightweight
700W RMS Digipro G3 Class-D Amplifier
Switched Mode Power Supply with Auto-Range
Digital Controller on Board
Dual Function Feet
Technical Specifications
Acoustical data Frequency Response 45 – 140 Hz Frequency Response 40 – 165 Hz Max SPL 131 dB LF 12” Voice Coil LF 3” Directivity Omnidirectional Amplifier Amp Technology Digipro G3 Amp Class Class D Power Supply 700W SMPS with PSU Auto-range (110V~ and 220V~) LF Amp 700 W RMS (1400 W Peak) Cooling Convection Processor Controller DSP 56 bit AD/DA Converter 24 bit/48 kHz Controls X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data) Limiter Dual active, RMS/Peak, Thermal Crossover Frequency LF-HF 90 – 120 Hz LF X-over out slope 24 dB/Octave Mechanics Housing Multiplex plywood – Polyurea painting Handles 1x left side, 1x right side Feet 4x Dual Position Reversable Feet (flying/stacking mode) Fittings M20 screw for pole mount on top side, integrated hardware with fast lock mechanics Width 460 mm (18.1 in) Height 430 mm (16.9 in) Depth 385 mm (15.2 in) Weight 26.5 kg (58.4 lbs)
