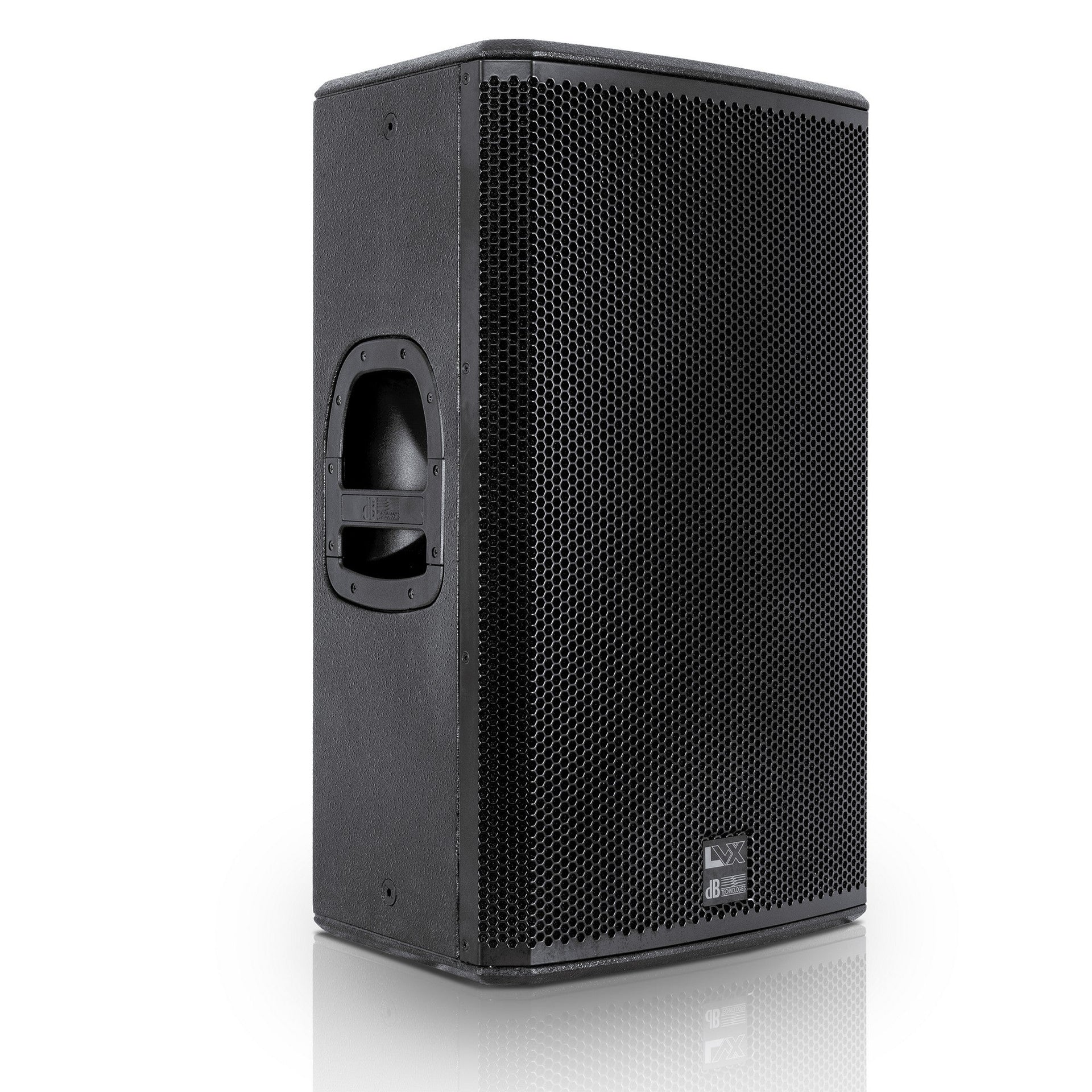

dB Technologies LVX 15 15-Inch 800W 2-Way Active Speaker, Black

dB Technologies LVX 15 15-Inch 800W 2-Way Active Speaker, Black
LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful. As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.
The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.
The enclosure is made of robust 12mm plywood with a look very elegant and refined.
LVX 15 is provided with a top handle and 2 side handles to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods.
Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.
All models and related accessories are available in black or withe finishes.
The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look.
Key Features
2-Way Active Speakers
800W Class-D Digipro amplifier
15” woofer (2” voice coil)
1” compression driver
90° x 40° directivity
Rotatable Compr. Driver Horn
AD/DA 24 bit/48 kHz
EQ presets selection
Peak, RMS, Thermal Limiter
12x M10 Rigging points
No Cooling Fan
Technical Specifications
Acoustical data Frequency Response 49 20.000 Hz Frequency Response 54 19.000 Hz Max SPL 128 dB HF 1” Directivity 90 x 40 Degrees Horn Rotatable CD Horn LF 15” Amplifier Amp Technology Digipro G2 Amp Class Class-D Peak Power 1600 W PRG Power 800 W Processor Controller DSP 24bit/48kHz System Presets Flat, Processed Limiter Dual Active Peak, RMS, Thermal Crossover Frequency LF-HF 1800 Hz Slope LF-HF 24 dB/Octave Mechanics Housing Multiplex Angles Up Monitor use 45 Degrees Handles 3 (1x top side, 1x side) Rigging points 12 x M10 Pole mount D36 mm Width 430 mm (16.93 in) Height 680 mm (26.77 in) Depth 430 mm (16.93 in) Weight 20.7 kg (45.64 lbs)
