Electro-Voice SX600PI Weather-Resistant High Output Indoor / Outdoor Speaker Permanent Installation
$4,599.20

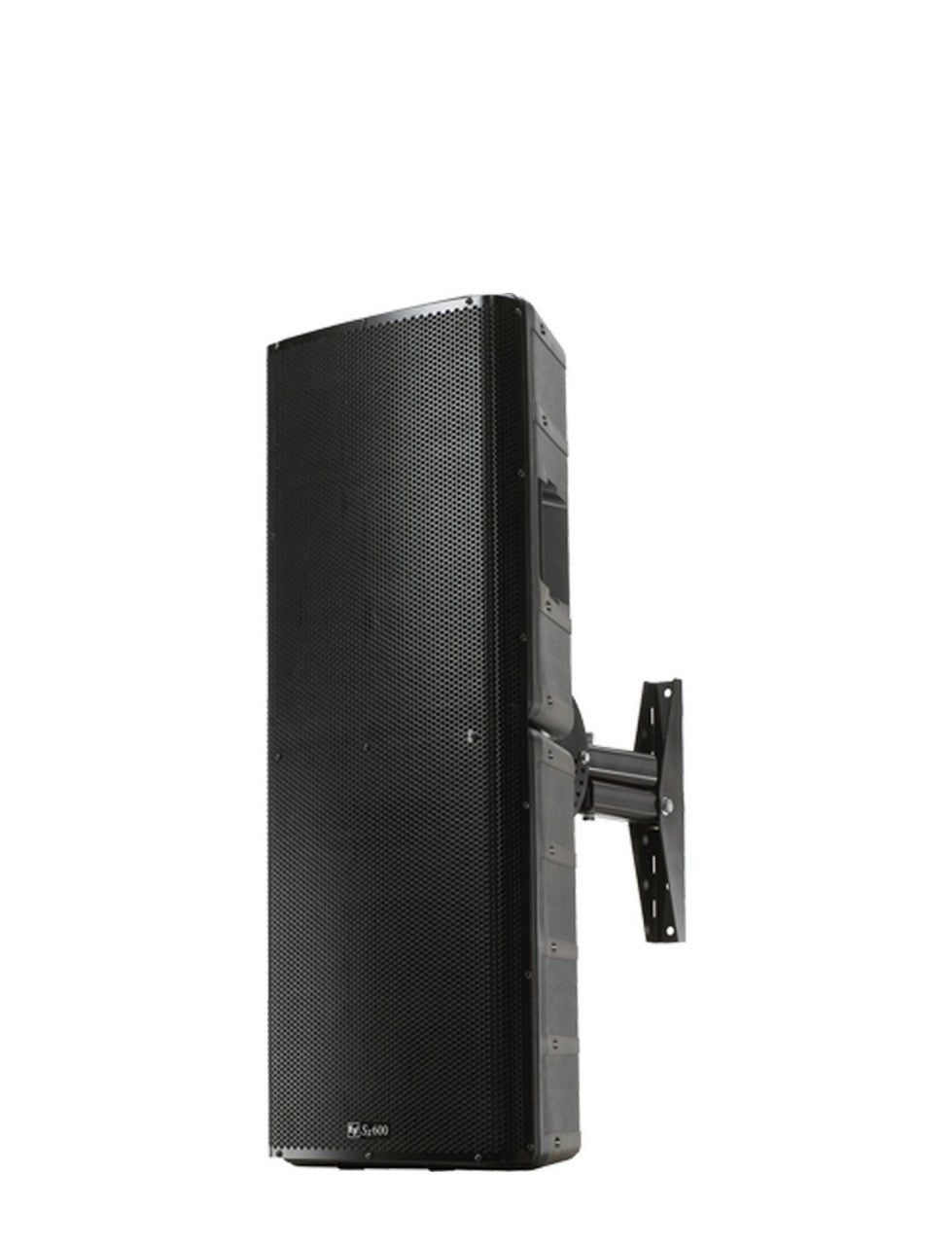

Electro-Voice SX600PI Weather-Resistant High Output Indoor / Outdoor Speaker Permanent Installation
The Electro-Voice SX600PI Weather-Resistant High Output Indoor / Outdoor Speaker Permanent Installation is a higher power extensions of the popular Sx-series of weather resistant indoor/ outdoor speaker systems. The Sx600 series features a dual 12-inch two-element vertical array based on the powerful Neodymium woofer developed for X-Array. Mid-bass and low frequency energy is augmented by an overlapping DL series woofer to produce vertical pattern control and intelligibility superior to conventional horn systems. The HF section features the DH2t compression driver coupled to a molded-in 65° x 65° Constant Directivity horn using EV’s unique Varipath throat geometry. An EV-exclusive SuperSAMTM mounting system allows 60 degrees of vertical adjustment and 180 degrees of horizontal pan with simple adjustment. The molded polymer enclosure combined with aluminum & neodymium components provide a lightweight, easy to handle system. A multilayer stainless steel grille protects against rain, sprayed water, and dust to IEC 529 IP 44 Mil Spec 810 humidity, salt spray, and UV specifications.
Key Features
Very Lightweight — 80 lbs (36.3 kg)
Easy, Versatile, SuperSAMTM Mounting System
Two Element Vertical Line Array
Very High Sensitivity, 105dB 1w/1m (139dB Peak SPL)
600 Watt Power Handling
All Weather IEC 529 IP 44 & Mil Spec 810 Environmental Specs
High Intelligibility
Technical Specs
Frequency Response (-3dB)
100 Hz – 14 kHz
Frequency Range (-10dB)
70 Hz – 16 kHz
Max. Calculated SPL
139dB
Horizontal Coverage
65 degrees Nominal
Vertical Coverage
65 degrees Nominal
Power Handling
600 Watts Cont., 2400 Watts Peak
Sensitivity (SPL 1W/1m)
105dB
Impedance
4Ohms (Nominal), 3.5Ohms (Min.)
Crossover Frequency
1.8kHz , LF/MB Overlap: 200-600Hz
Recommended Filtering
90Hz Highpass Filter, @ Q=1.6
Recommended Amplifier
EV CPS Series
Connectors
SJO Cable with Gland Nut
Enclosure Material
High Density Polymer
Mounting
SuperSAM, 5 degrees Increments over 60 degrees Vertical, 180 degrees Horizontal, can be bolted or strapped
Grille
Powder coated Stainless Steel
Weather Resistance
IEC 529 IP 44, Mil Spec 810 humidity, salt spray, temperature, and UV
Dimensions (H x W x D)
45.8” x 16.9” x 12.3” (1163mm x 429mm x 312mm)
Net Weight
80.0lbs. (36.3kg)
