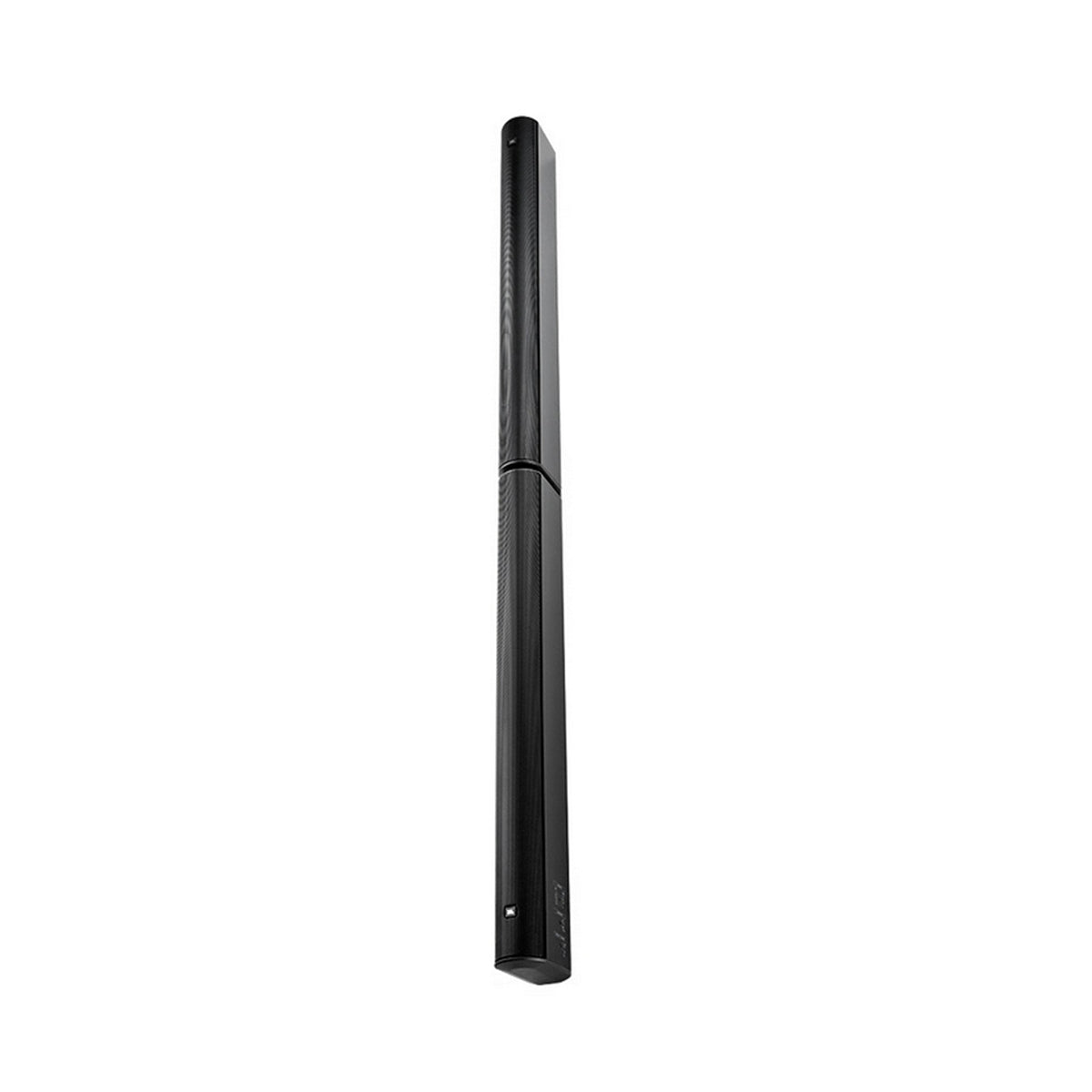

JBL CBT 200LA-1 200cm Tall Constant Beamwidth Technology Line Array Column Speaker BLACK
$2,445.00
JBL CBT 200LA-1 | 200cm Tall Constant Beamwidth Technology Line Array Column Speaker BLACKThe JBL CBT 200LA-1 is a 200cm tall column speaker featuring JBL’s innovative Constant Beamwidth Technology. This advanced technology provides consistent coverage across its wideband frequency range, ensuring superior sound clarity and precision. The speaker’s unique design addresses common issues found in both powered and non-powered column speakers, such as inconsistent vertical beaming and out-of-coverage lobing. With its sleek, narrow profile, the CBT 200LA-1 integrates seamlessly into various environments, making it suitable for both indoor and outdoor use. The speaker’s robust construction, coupled with advanced beam-forming capabilities, makes it an ideal choice for professional audio applications seeking reliable, high-performance sound distribution.The CBT 200LA-1 offers versatile coverage options with switchable vertical pattern settings, allowing users to adjust between 15° and 30° coverage angles to suit different venue needs. The innovative Asymmetrical Progressive-Gradient vertical coverage setting further enhances sound consistency by directing more sound towards the far end of the listening space. This ensures that all audience members experience balanced audio levels. Additionally, the speaker is equipped with dynamic Sonic-Guard overload protection, safeguarding the system against potential damage during high-demand use.Engineered for durability, the JBL CBT 200LA-1 features a weather-resistant enclosure and IP-55 rating, making it suitable for outdoor installations. The included swivel and tilt wall bracket provide flexible mounting options, while the built-in 70V/100V transformers offer easy integration into existing audio systems. Whether for a concert hall, house of worship, or outdoor venue, the JBL CBT 200LA-1 delivers precise, reliable sound reinforcement with unparalleled consistency and clarity.Key Features
Patented Constant Beamwidth Technology for consistent wide-band directivity
200cm height for extended pattern control
Switchable vertical pattern coverage between 30° and 15°
Asymmetrical Progressive-Gradient vertical coverage for consistent sound levels
Narrow 98.5mm width for seamless integration
Dynamic Sonic-Guard overload protection
Built-in 70V/100V transformers with direct capability
Swivel and tilt wall bracket included for flexible mounting
Weather-resistant enclosure with IP-55 rating
UV, moisture, and salt-spray resistant
Specifications
Components: Thirty-two 50mm (2in) full-range drivers
Frequency Range: 80Hz – 20kHz
Frequency Response: 130Hz – 18kHz (narrow coverage, music mode)
Vertical Coverage: 15° narrow mode, 30° broad mode, 22° asymmetrical mode
Horizontal Coverage: 150°
Sensitivity: Up to 95dB
Nominal Impedance: 8 ohms
Power Capacity: 650W (2600W peak)
Max SPL: Up to 123dB
Transformer Type: 70V/100V with various power taps
Enclosure: Fiberglass reinforced ABS cabinet
Connectors: Screw-down terminal strip
Outdoor Capability: IP-55 rated
Dimensions: 2000 x 98.5 x 153 mm
Net Weight: 14.6 kg (33 lb)
Package Contents
JBL CBT 200LA-1 column speaker (top and bottom halves)
Swivel (pan) / tilt wall bracket
Coupler plate
