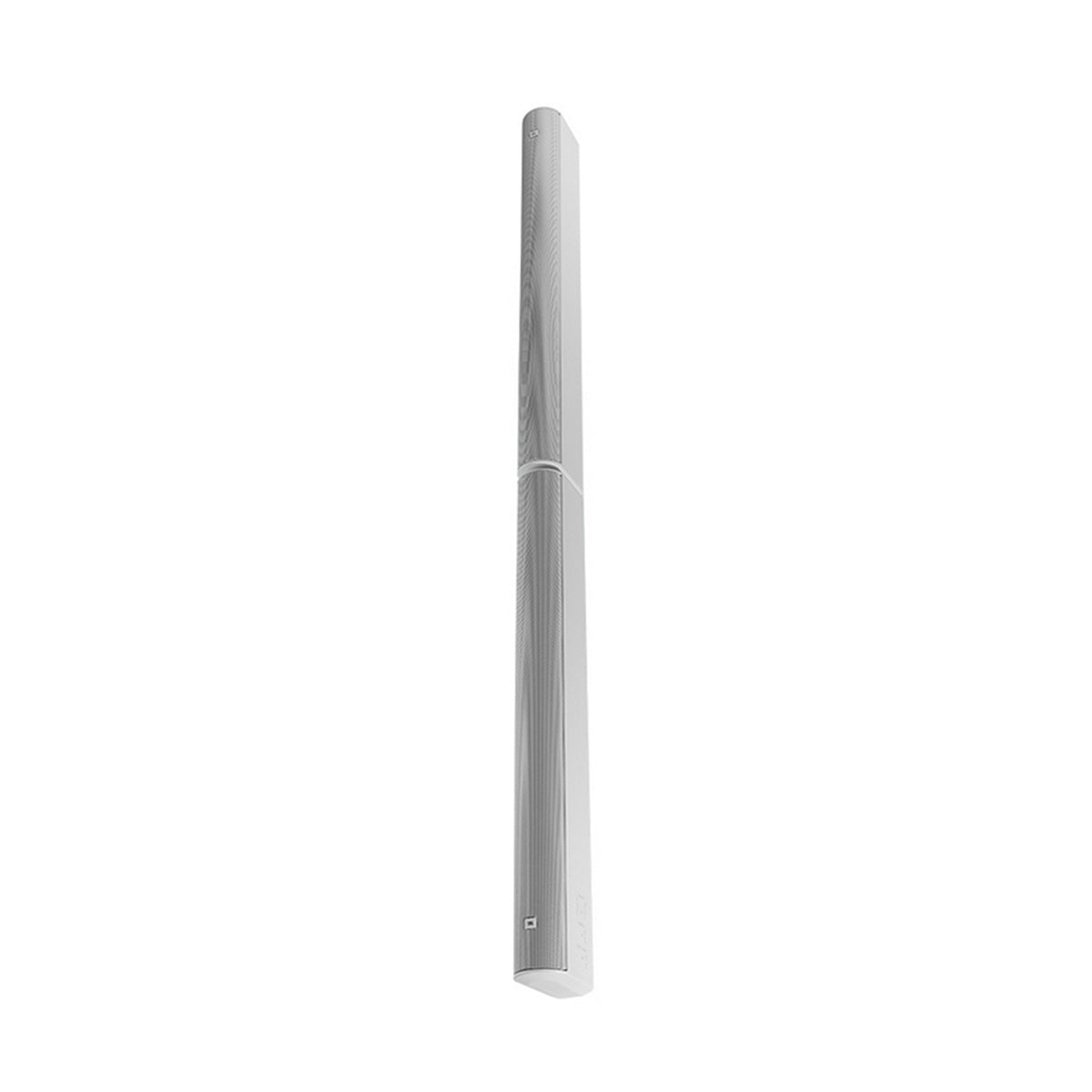

JBL CBT 200LA-1-WH 200cm Tall Constant Beamwidth Technology Line Array Column Speaker WHITE

JBL CBT 200LA-1-WH | 200cm Tall Constant Beamwidth Technology Line Array Column Speaker WHITEThe JBL CBT 200LA-1-WH is a revolutionary 200cm tall line array column speaker uniquely designed for areas where consistent and clear sound coverage is crucial. Utilizing JBL’s patented Constant Beamwidth Technology, this speaker ensures wide-band constant directivity and reduces out-of-coverage lobing, making it an excellent choice for both medium and long-throw applications. This white column speaker is aesthetically pleasing and fits seamlessly into various environments, from large auditoriums to intimate conference rooms. The speaker features a sophisticated analog delay beam-forming and amplitude tapering that work together to deliver an immersive audio experience free from the typical vertical beaming and uneven coverage problems associated with conventional column speakers.With its dynamic sonic guard low-audibility overload protection and integrated 70V/100V transformers, the JBL CBT 200LA-1-WH is built for both performance and protection. The vertical pattern coverage can be switched between 30° and 15°, allowing you to tailor the sound dispersion to your specific needs. Equally impressive is the asymmetrical progressive-gradient vertical coverage setting, which directs more sound toward the far end of the listening space for a more consistent front-to-back sound level.The speaker’s narrow width of just 98.5 mm allows it to fit into various applications without compromising on performance. Additionally, it comes with a swivel (pan) and tilt wall bracket for easy installation. This versatile speaker is ideal for both indoor and outdoor use, thanks to its IP-55 rating and robust construction designed to withstand UV radiation, moisture, and saltspray.Key Features
Patented Constant Beamwidth Technology for wide-band constant directivity
200cm height extends pattern control to lower frequencies
Switchable vertical pattern coverage between 30° and 15°
Asymmetrical progressive-gradient vertical coverage setting
Narrow 98.5 mm width fits various applications
Dynamic Sonic-Guard low-audibility overload protection
Integrated 70V/100V transformers
Swivel (pan) and tilt wall bracket included
Specifications
Components: Thirty-two 50 mm (2 in) Full-Range Drivers
Frequency Range (-10 dB): 80 Hz – 20 kHz
Frequency Response (±3 dB): 130 Hz – 18 kHz (narrow coverage, music mode setting)
Coverage – Vertical: Narrow Mode: 15°; Broad Mode: 30°; Asymmetrical Progressive-Gradient Mode: 22°
Coverage – Horizontal: 150°
Sensitivity – Narrow: 95 dB (speech mode); 92 dB (music mode)
Sensitivity – Broad: 93 dB (speech mode); 90 dB (music mode)
Sensitivity – Asymmetrical: 94 dB (speech mode); 91 dB (music mode)
Nominal Impedance: 8 per half (top and bottom) for 4 ohms total
Power Capacity (thru setting): 650W (2600W peak), 2 hrs; 400W (1600W peak), 100 hrs
Maximum SPL: Narrow Mode: 123 dB (speech); 120 dB (music); Broad Mode: 121 dB (speech); 118 dB (music); Asymmetrical Mode: 122 dB (speech); 119 dB (music)
70V/100V Transformer: 120W, 60W, 30W (15W at 70V only), and direct 8 ohms
Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
Connectors: Two screw-down terminal strips
Outdoor Capability: IP-55 rated
Dimensions (H x W x D): 2000 x 98.5 x 153 mm
Net Weight: 14.6 kg
Package Contents
JBL CBT 200LA-1-WH Column Speaker (Top and Bottom Halves)
Swivel (Pan) / Tilt Wall Bracket
Coupler Plate
