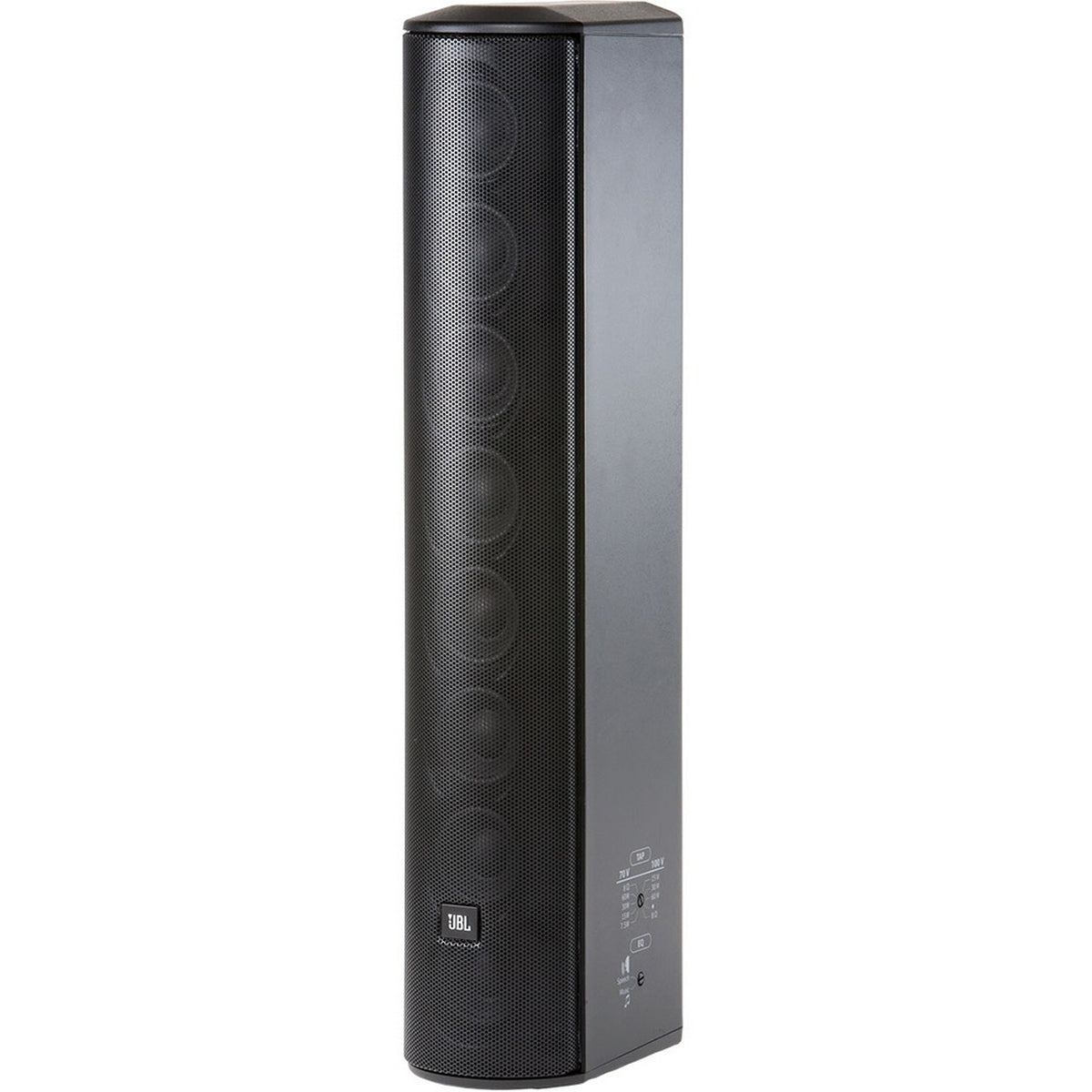

JBL CBT 50LA-LS CBT 50LA-LS Constant Beamwidth Technology Line Array Column Loudspeaker BLACK
$670.00
JBL CBT 50LA-LS Constant Beamwidth Technology Line Array Column Loudspeaker BLACKThe JBL CBT 50LA-LS is a revolutionary advancement in sound technology, designed to deliver exceptional audio clarity with its Constant Beamwidth Technology. This line array column loudspeaker is crafted to provide consistent vertical coverage without the typical narrow vertical beaming and out-of-coverage lobing found in standard passive column speakers. Whether you are using it for speech or music, the CBT 50LA-LS ensures a top-tier audio experience with its switchable voicing options and innovative design.This cutting-edge loudspeaker is EN54-24 compliant when installed with the included MTC-PC2 panel cover, making it a versatile choice for a range of professional applications. The swivel (pan) and tilt wall bracket included with the CBT 50LA-LS allows for precise positioning, ensuring optimal sound direction and coverage. Its robust construction, featuring a fiberglass reinforced ABS cabinet and painted aluminum grille, guarantees durability and suitability for both indoor and outdoor environments. The IP-55 rating highlights its resistance to UV, moisture, and acid-air/salt-spray conditions, making it an excellent choice for challenging outdoor installations.Whether for a corporate environment, public space, or entertainment venue, the JBL CBT 50LA-LS offers unmatched audio performance and reliable durability. Its advanced features and specifications ensure that it can meet the demanding expectations of any professional audio setup.Key Features
Patent-pending Constant Beamwidth Technology for constant directivity and reduced out-of-coverage lobing
EN54-24 compliant with included MTC-PC2 panel cover
Switchable voicing for flat response in music mode or mid-range presence peak in speech mode
Dynamic SonicGuard overload protection
Built-in 70V/100V transformer, plus 8 ohm direct capability
Included swivel (pan) and tilt wall bracket for versatile mounting options
Specifications
Components: Eight 50 mm (2 in) Full-Range
Frequency Range (-10 dB): 120 Hz – 20 kHz
Coverage Pattern: Vertical 20° (1.5 kHz – 16 kHz ±10°), Horizontal 150° (1 kHz – 4 kHz ±20°)
Sensitivity (2.83V @ 1m): 93 dB (speech mode, 2 kHz – 14 kHz), 89 dB (music mode, 300 Hz – 18 kHz)
Nominal Impedance: 8 ohms
Power Capacity: 150W (600W peak) for 2 hours, 100W (400W peak) for 100 hours
Max SPL: Speech mode: 115 dB cont ave (121 dB peak), Music mode: 111 dB cont ave (117 dB peak)
70V/100V Transformer Taps: 60W, 30W, 15W (7.5W at 70V only), and 8 ohm direct via switch
Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability: IP-55 rated, UV and moisture resistant
Dimensions (H x W x D): 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
Net Weight: 4.1 kg (9.0 lb)
Certification: EN54-24:2008 certified
Package Contents
JBL CBT 50LA-LS Loudspeaker
Swivel (pan) and tilt wall bracket
MTC-PC2 terminal panel cover
