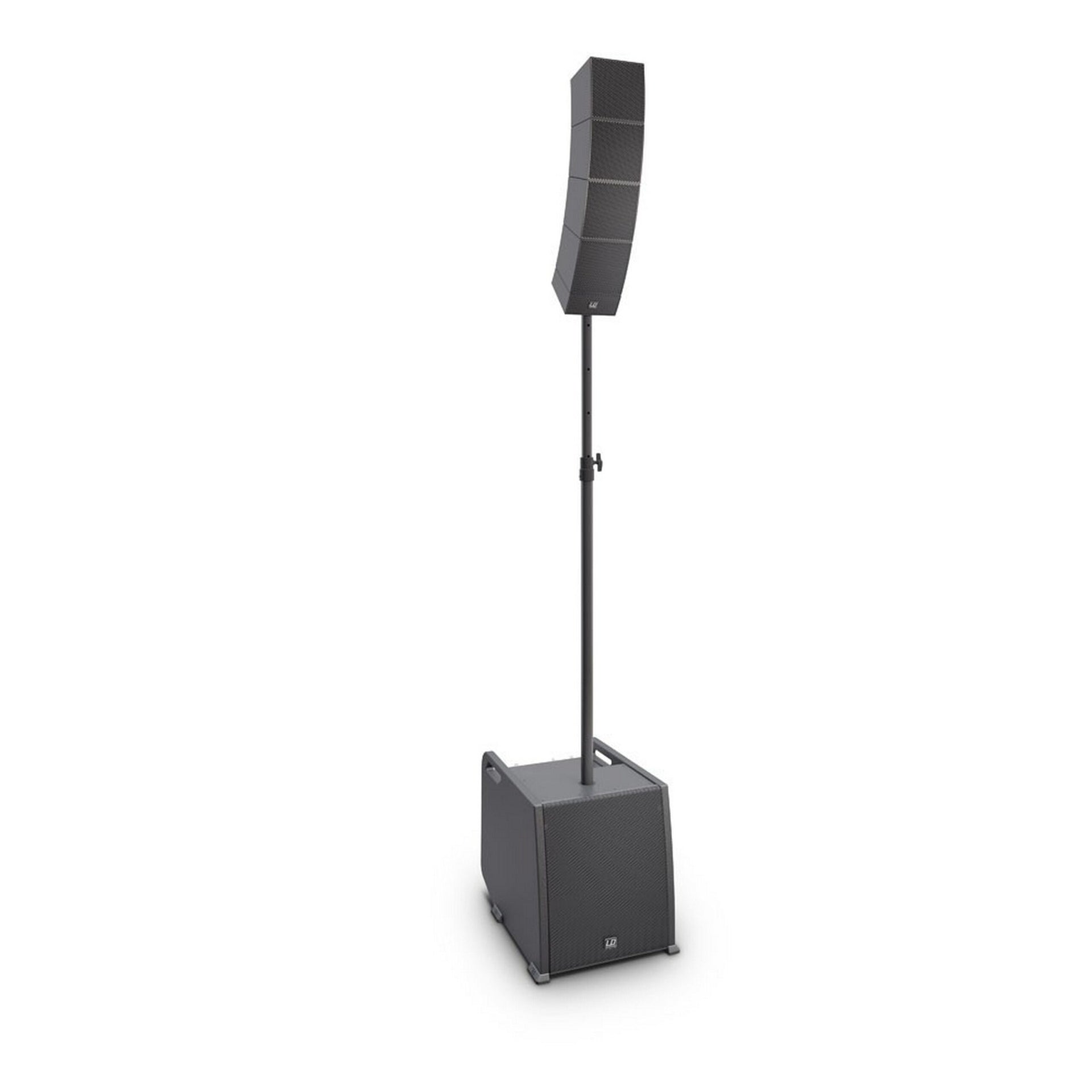

LD Systems CURV 500 PES Portable Array System Power Extension Set with Distance Bar and Speaker Cable
$1,459.99
LD Systems CURV 500 PES Portable Array System Power Extension Set with Distance Bar and Speaker CableThe LD Systems CURV 500 PES Portable Array System Power Extension Set offers unparalleled sound reinforcement, ideal for enhancing an existing CURV 500 Entertainer Set. When increased bass power is necessary, this extension set transforms your portable array system into a robust Power Set. Engineered to align aesthetically with the acclaimed CURV 500 design, the set features an extension subwoofer, four array satellites, a SmartLink Adapter, a distance bar, and speaker cables. The system does not include a mixer but compensates with powerful Class D amplifiers offering 300 watts RMS and 1200 watts peak bass. Additionally, the four satellites use a power amplifier with 160 watts RMS or 640 watts peak. Combined with a DSP-based multiband limiter, the set ensures distortion-free sound and unrivaled clarity.Constructed with a bass-reflex plywood cabinet covered in PA-protective lacquer, this extension set not only looks great but is also exceptionally durable. Each satellite features die-cast aluminum construction with a powder-coated finish, ensuring longevity while maintaining a sleek appearance. Whether you need to elevate your sound for a live performance or an event, the CURV 500 PES offers both reliability and professional-grade sound quality.The included SmartLink Adapter with a patented click mechanism allows for easy setup and integration with your existing system, making it user-friendly even for those new to PA systems. Protection circuits prevent thermal overload, short circuits, and other potential issues, ensuring your equipment remains safe and operational for all your sound needs.Key Features
10-inch woofer in a bass-reflex cabinet for a well-defined bass
Plywood cabinet with PA-protective lacquer
Power Output (RMS/Peak): 300 W/1200 W Subwoofer; 160 W/640 W Satellite
Class D power amplifier with switching power supply
DSP-based multiband limiter for distortion-free sound
Protection circuits
Five-pin XLR sockets for system wiring
SmartLink Adapter with patented click mechanism
Four array satellites made of die-cast aluminum, powder-coated cabinet, with dimensions of 122 x 122 x 122 mm
Speaker Cables
Specifications
Product type: PA Complete Systems
System output (RMS): 460 W
Colour: Black
Number of array satellites: 4
Number of Smartlink adapters: 1
Number of subwoofers: 1
Max. SPL (continuous): 122 dB
Max. SPL (peak): 128 dB
Freq. response: 47 – 20000 Hz
Dispersion (H x V): 110 horizontal, vertical (each satellite) 10
RMS: Subwoofer: 300 W, Array Satellites: 2 x 160 W
Peak power: Subwoofer: 1200 W, Array Satellites: 2 x 640 W
Amplifier: Class D
Protection circuits: DSP-based multiband limiter, overload, short circuit, thermal overload
Weight: 26.5 kg
Subwoofer: Low/mid driver dimensions: 10 ”
Woofer size: 254 mm
Cabinet construction: Bass Reflex
Cabinet material: plywood
Cabinet surface: PA painting
Dimensions Subwoofer (W x H x D): 325 x 383 x 491 mm
Subwoofer weight: 16.5 kg
Subwoofer features: 3 ergonomic handles, Threaded flange M20
Mid/Hi system: MF: 1 x 4″ / HF: 3 x 1″ with WaveAhead Technology / 16 ohms
Array Satellite Features: internal crossover, metal grille, WaveAhead Technology
Array Satellite Material: die-cast aluminum
Array Satellite Surface: Powder-coated
Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
Array Satellite Weight: 1.7 kg
Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
Smartlink Adapter Connectors: 1 x Speakon-compatible, 1x Phoenix
Smartlink Adapter Material: die-cast aluminum
Smartlink Adapter Surface: Powder-coated
Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
Smartlink Adapter Weight: 0.6 kg
Package Contents
5-pin XLR system cable (10 m)
Distance bar
Power cord
Speaker cable CURV 500 CABLE 1 (2.2 m)
