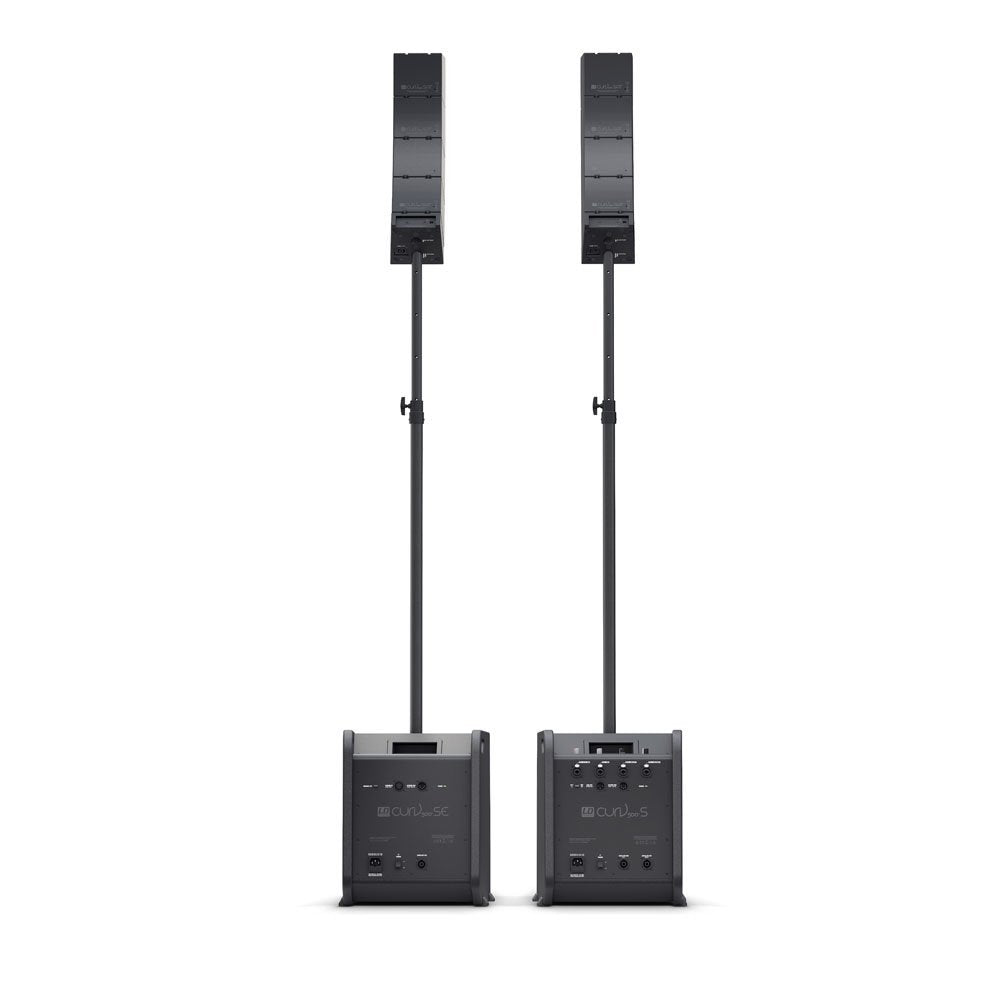

LD Systems CURV 500 PS Portable Array System Power Set with Distance Bars and Speaker Cables
$2,499.99
LD Systems CURV 500 PS Portable Array System Power Set with Distance Bars and Speaker CablesThe LD Systems CURV 500 PS Portable Array System Power Set is an exceptional sound reinforcement solution designed to cater to both mobile and fixed applications. With its superior power of 920 watts RMS and an impressive peak sound pressure level of 134 dB, this portable array system is perfect for larger events or demanding audio environments. The system features two subwoofers and eight satellites, ensuring it can handle high-power requirements with ease, especially in the bass range. The CURV 500 is known for its high-definition audio output, portability, and scalability, making it a versatile choice for any professional audio setup.The CURV 500 PS is equipped with advanced WaveAhead technology, ensuring high-definition audio output across all frequencies. Its modular design allows for seamless mounting options via the SmartLink plug & play adapter, offering unparalleled versatility and ease of setup. The built-in 4-channel mixer with DFX and Bluetooth technology significantly enhances the system’s flexibility, allowing for various audio inputs and Bluetooth streaming. Made from durable, lightweight aluminum with a powder-coated surface, the system is built to withstand the rigors of mobile use.Key Features
The first truly portable array system
Fully scalable for far and near field applications
WaveAhead technology for high definition audio
SmartLink plug & play adapter for universal mounting options
Built-in 4 channel mixer with DFX and Bluetooth technology
Durable lightweight aluminum unibody array elements
For mobile and fixed applications
Specifications
Product type: PA Complete Systems
System output (RMS): 920 W
Colour: Black
Number of array satellites: 8
Number of Smartlink adapters: 2
Number of subwoofers: 2
Max. SPL (continuous): 128 dB
Max. SPL (peak): 134 dB
Freq. response: 47 – 20000 Hz
Dispersion (H x V): 110 horizontal, vertical (each satellite) 10
RMS: Subwoofer: 300 W, Array Satellites: 2 x 160 W, Subwoofer Extension: 300 W
Peak power: Subwoofer: 1200 W, Array Satellites: 2 x 640, Subwoofer Extension: 1200 W
Amplifier: Class D
Protection circuits: DSP-based multiband limiter
Weight: 59.1 kg
Subwoofer: Low/mid driver dimensions: 10 inches
Woofer size: 254 mm
Cabinet construction: Bass Reflex
Cabinet material: Plywood
Cabinet surface: PA painting
Dimensions Subwoofer (W x H x D): 325 x 383 x 491 mm
Subwoofer weight: 16.5 kg
Subwoofer features: 16 DFX Presets, 3 ergonomic handles, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20
Array Satellites: Mid/Hi system: MF: 1 x 4 inches/HF: 3 x 1 inch (WaveAhead Technology), 16 ohms
Array Satellite Features: Internal crossover, metal grille, WaveAhead Technology
Array Satellite Material: Die-cast aluminum
Array Satellite Surface: Powder-coated
Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
Array Satellite Weight: 1.7 kg
Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
Smartlink Adapter Connectors: 1 x Speakon-compatible, 1x Phoenix
Smartlink Adapter Material: Die-cast aluminum
Smartlink Adapter Surface: Powder-coated
Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
Smartlink Adapter Weight: 0.6 kg
Package Contents
2 x Distance bar
2 x Power cable
2 x Speaker cable CURV 500 CABLE 1 (2.2 m)
5-pin XLR system cable (10 m)
