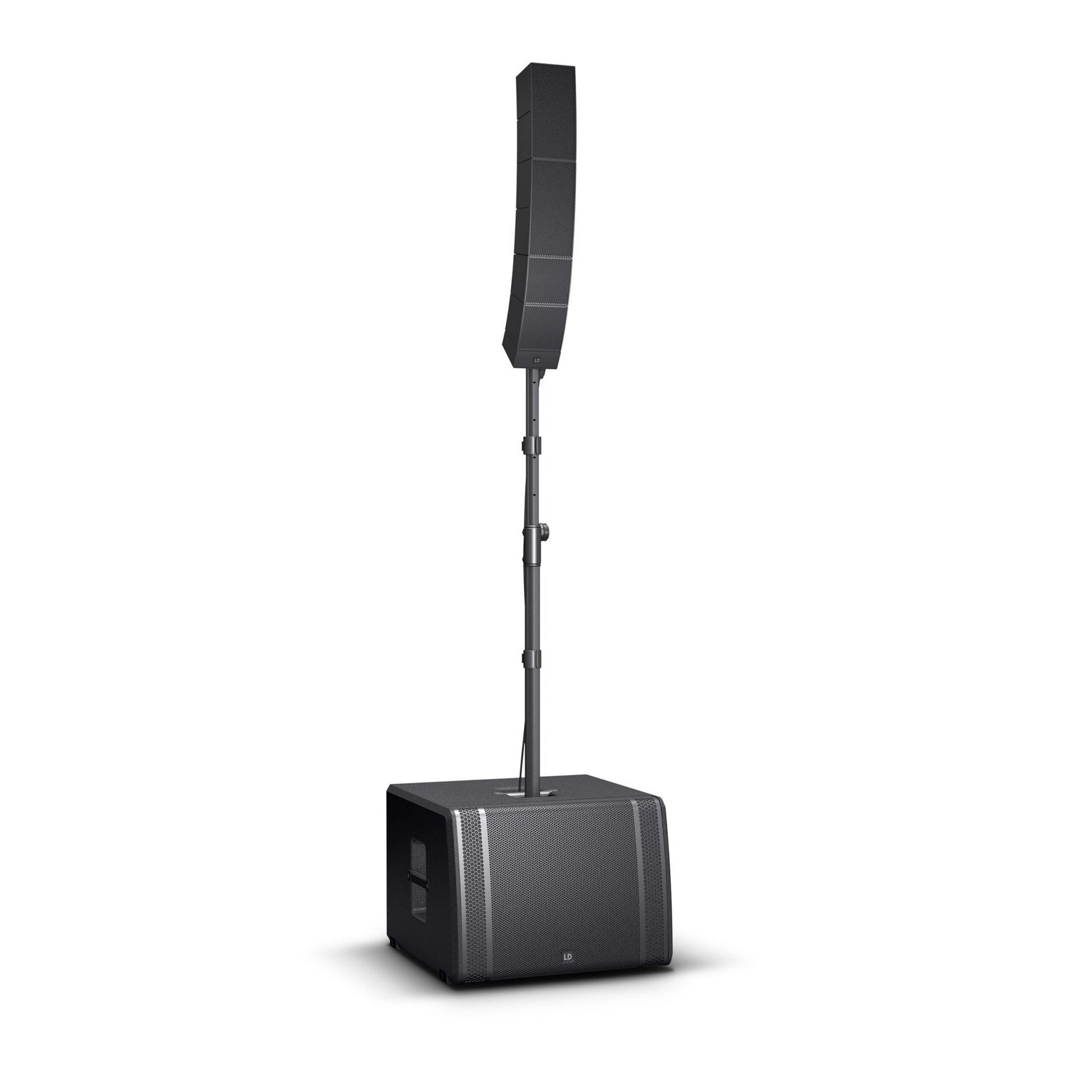

LD Systems CURV 500 TS Compact Touring Array System

LD Systems CURV 500 TS Compact Touring Array SystemThe LD Systems CURV 500 TS Compact Touring Array System is an exceptional choice for musicians and sound engineers who demand professional-grade sound in a portable design. This system is engineered with innovative WaveAhead technology, providing impeccable high-frequency distribution and crystal-clear midrange tones. Its scalable configuration allows for seamless adaptability, making it suitable for a wide range of venues and performance sizes. Whether you’re on the road or setting up for a local gig, the CURV 500 TS ensures superior audio performance every time.The system includes four interlocking aluminum unibody line array elements that integrate effortlessly via a SmartLink plug and play adapter. It comes with two standard CURV satellites that boast single 4″ midrange and triple 1″ high Freq. drivers, alongside two duplex satellites that offer double the speaker complement for an enriched sound experience. In addition, the ported 15″ subwoofer base houses the system’s class D amplification, complete with advanced protection features including a multiband limiter, short circuit, thermal, and overcurrent protection.Offering unparalleled versatility and impressive connectivity options, the CURV 500 TS features combo and speakON compatible connectors, six DSP presets for easy configuration, and an M20 pole mount. This system is designed to deliver powerful punch and superb balance with extended vertical and horizontal coverage, all while being extremely lightweight and easy to transport.Key Features
Highly portable and scalable design
Advanced WaveAhead technology for superior sound quality
SmartLink plug and play adapter
Four interlocking aluminum unibody line array elements
Ported 15″ subwoofer base with class D amplification
Multiband limiter, short circuit, thermal, and overcurrent protection
Comprehensive connectivity options with combo and speakON connectors
Six DSP presets for quick system configuration
M20 pole mount for convenient setup
Specifications
System output (RMS): 1000 W
Color: Black
Number of array satellites: 4
Number of Smartlink adapters: 1
Number of subwoofers: 1
Max. SPL (continuous): 125 dB
Max. SPL (peak): 131 dB
Freq. response: 40 – 20000 Hz
Dispersion (H x V): 110 horizontal, vertical 34
RMS: Subwoofer: 700 W, Array Satellites: 300 W
Peak power: Subwoofer: 1400 W, Array Satellites: 600 W
Amplifier: Class D
Weight: 48.2 kg
Protection circuits: DSP-based multiband limiter, overload, short circuit, thermal overload
Dimensions Subwoofer (W x H x D): 600 x 437 x 587 mm
Subwoofer weight: 35.5 kg
Subwoofer features: 4 ergonomic handles, 6 System DSP Presets, Powercon, speakON output, Threaded flange M20
Package Contents
LD Systems CURV 500 TS Compact Touring Array System
