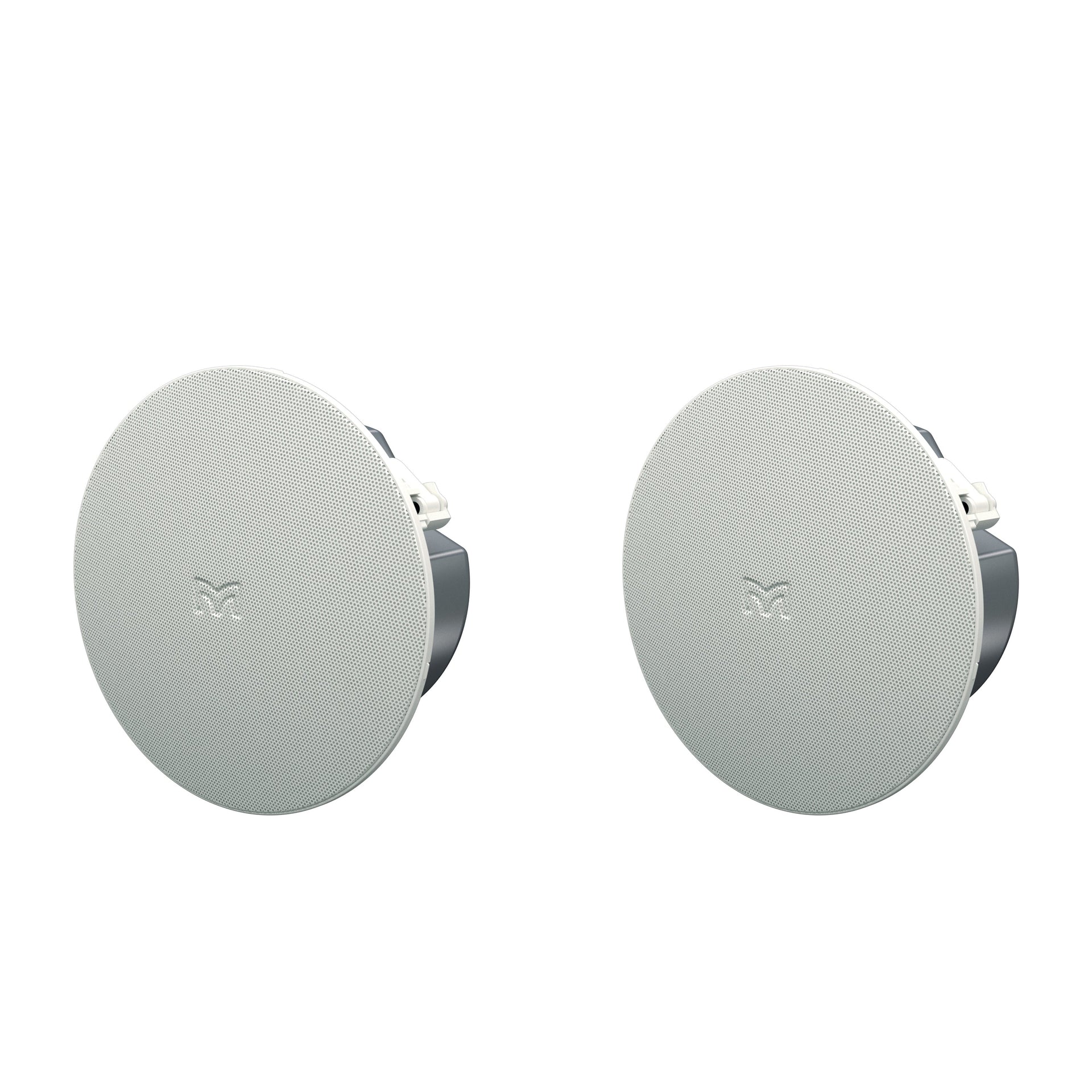

Martin Audio ACS-40TS-W 4-Inch Passive Two-Way Ceiling Speaker, White (Pair)

The Martin Audio ACS-40TS-W belongs to the ADORN commercial loudspeaker series and is an ultra-compact, two-way ceiling speaker designed for both background and foreground applications where premium performance meets cost competitiveness. Its 4″ (100 mm) LF driver and 0.75″ (19 mm) silk-dome tweeter produce up to 108 dB peak at 1 m. Meanwhile, the ported design extends bass to 73 Hz, delivering high-fidelity sound for music and speech.

Thanks to its very wide 180° conical coverage, the ACS-40TS reduces the number of speakers needed for even coverage—thereby lowering installation cost. Furthermore, it features a shallow back-can to suit ceilings with minimal cavity depth. The built-in transformer supports 70 V/100 V line operation or low-impedance 16 Ω mode, selectable via a rotary switch behind the powder-coated, perforated steel grille. In addition, both LF and HF sections include auto-resetting thermal fuses for full-band-width protection. The bezel-less white grille (RAL 9016) allows a clean finish and can be painted to match décor.

For more professional audio equipment and installation advice, visit our AVLS Gears Blog. Learn about our company on the About AVLS Gears page, or browse the full range in our Speakers Category.
Additionally, international customers may explore offerings through AVLS Paris for shipping and support across Europe.

Key Features

• High-performance two-way ceiling speaker

• 4″ (100 mm) LF driver and 0.75″ (19 mm) HF dome tweeter

• 180° conical coverage pattern reduces required speaker count

• 70 V/100 V multitap line transformer or 16 Ω low-impedance operation

• Low and high-frequency overload protection

• UL 94V-0 rated baffle with zinc-plated steel back-can

• Quick-release bezel-less grille

• Tile rails and C-ring included

• 5-year warranty

Technical Specifications

TYPE
Ultra-compact, passive two-way ceiling speaker, ported bass reflex

FREQUENCY RESPONSE (1)
106Hz–20kHz ±3dB
-10dB @ 73 Hz

DRIVERS
LF: 4″ / 1″ high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75″ silk dome, neodymium motor

RATED POWER (2)
40W AES, 160W peak

RECOMMENDED AMPLIFIER
VIA2004 (for low-impedance operation)

SENSITIVITY (4)
86dB / 1W (4V) / 1m

MAXIMUM SPL (9)
108dB peak

NOMINAL IMPEDANCE
16 Ω

DISPERSION (-6 dB)
180° conical up to 10 kHz

CROSSOVER
3.5 kHz passive (LF and HF auto-resetting fuses)

TRANSFORMER TAPS
70 V: 20 W / 10 W / 5 W / 2.5 W
100 V: 20 W / 10 W / 5 W

RECOMMENDED HIGH-PASS FILTER
75 Hz, 24 dB/oct

ENCLOSURE
UL 94V-0 rated ABS baffle with steel back-can

FINISH
Baffle & grille: RAL 9016 white
Back-can: zinc-plated

GRILLE
Perforated steel, powder-coated, bayonet fitting

CONNECTORS
Ceramic connector (in & link) behind fire-retardant steel cover

ACCESSORIES (INCLUDED)
2 tile rails, C-ring backing plate, cut-out template

DIMENSIONS
(OD) 221 mm × (D) Back Can 97 mm, (D) Inc. Grille 115 mm
(OD) 8.7″ × (D) Back Can 3.81″, (D) Inc. Grille 4.51″
HOLE CUT-OUT DIMENSION
197 mm (7.75″) diameter

WEIGHT
2.2 kg (4.8 lbs)
