Pioneer Pro Audio XY-101 10-Inch Two-Way Full-Range Loudspeaker, White
$2,299.00

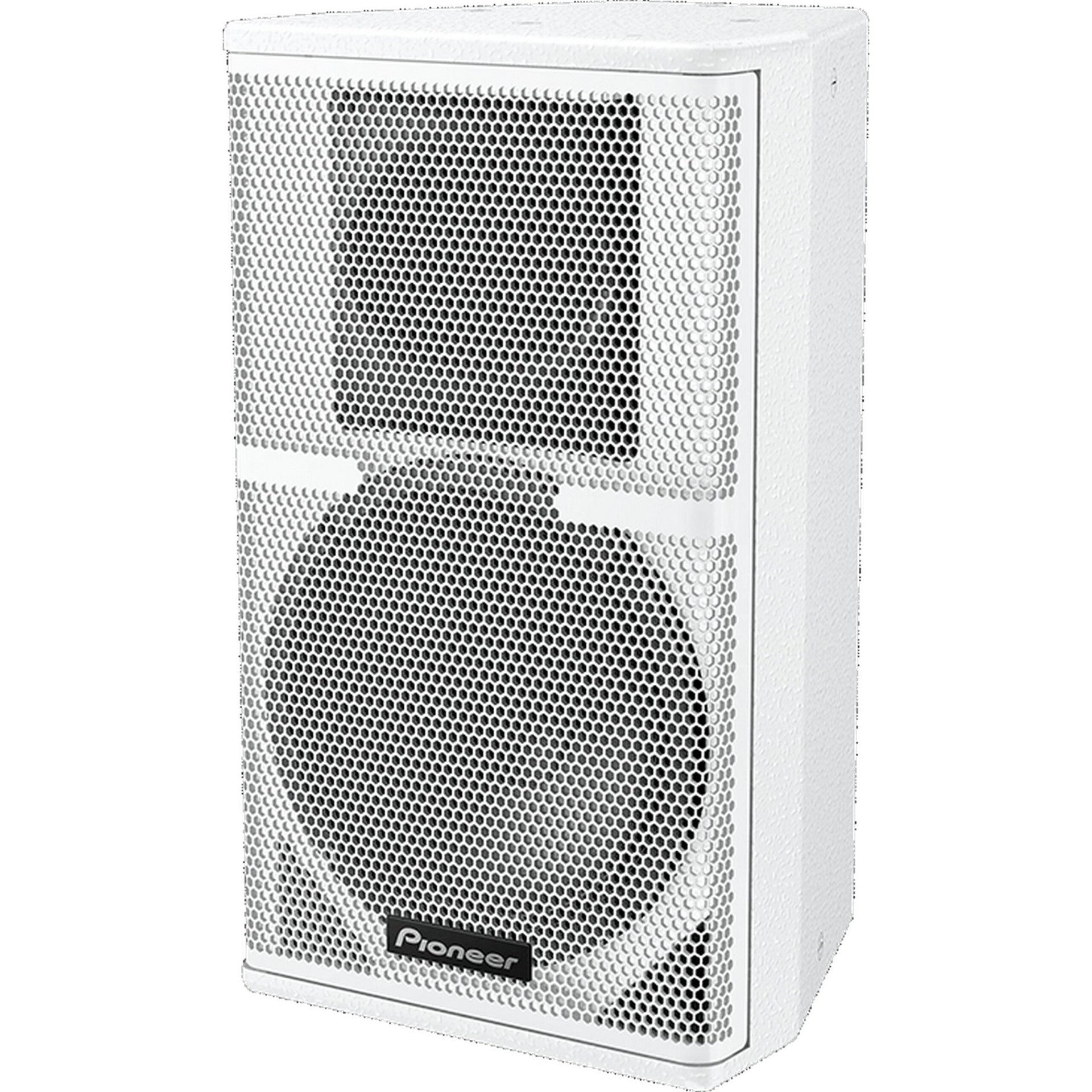

Pioneer Pro Audio XY-101 – 10-Inch Two-Way Full-Range Loudspeaker (White)
The Pioneer Pro Audio XY-101 is a professional-grade 10-inch two-way full-range loudspeaker designed to deliver exceptional clarity, durability, and versatility. Ideal for clubs, live events, houses of worship, corporate venues, and mobile setups, this speaker offers outstanding sound performance while remaining compact and easy to install.
Key Features
High-Performance Full-Range Sound
-
Equipped with a 10-inch LF driver and a 1-inch neodymium compression driver.
-
Designed to deliver crisp highs, punchy mids, and tight low frequencies suitable for speech and music reinforcement.
-
Excellent for both fixed installations and mobile sound applications.
Advanced Passive Crossover
-
The passive crossover board includes separate cooling zones, ensuring stable operation even under demanding conditions.
-
Tailored for continuous long-term performance in professional environments.
Optimized Coverage & Dispersion
-
Features a 90° × 60° dispersion pattern, ideal for wide, even sound coverage.
-
A rotatable horn allows flexible installation in both horizontal and vertical orientations.
Flexible Mounting & Installation Options
-
Multiple M8 and M6 threaded mounting points for flying, wall mounting, or bracket installation.
-
Includes a 35 mm polemount socket for easy portable use.
-
Standard NL4 input and link out connectors for seamless integration into any system.
Durable, Touring-Grade Construction
-
Enclosure built from high-quality 15 mm multi-laminate birch plywood.
-
Finished with impact-resistant textured paint for long-lasting protection.
-
Hex-punched steel grille ensures maximum driver protection.
Technical Specifications
| Specification | Details |
|---|---|
| Enclosure Type | Two-way passive, reflex-loaded |
| Drivers | 10″ neodymium LF driver, 1″ neodymium HF compression driver |
| Frequency Response | 70 Hz – 20 kHz |
| Sensitivity (1W/1m) | 94 dB |
| Nominal Impedance | 8 Ω |
| Power Handling | 400 W RMS / 800 W Program |
| Maximum SPL | 120 dB continuous, 126 dB peak |
| Dispersion | 90° (H) × 60° (V), rotatable |
| Crossover | Asymmetric internal passive |
| Connectors | 2 × Neutrik SpeakON NL4 |
| Rigging Options | Multiple M8/M6 threaded mounting points |
| Pole Mount | 35 mm socket |
| Grille | Hex-punched steel |
| Enclosure Material | 15 mm birch plywood |
| Dimensions (W × H × D) | 292 × 508 × 280 mm (11.5 × 20 × 11 in) |
| Weight | 14 kg (30.9 lbs) |
| Recommended Amplifier | K2DSP (recommended), M30DHDSP (minimum) |
| Accessories | Polemount socket cover (White model only) |
Why Choose the Pioneer XY-101?
The Pioneer XY-101 is engineered for audio professionals who need consistent, high-quality audio output in a compact and reliable package. Whether used as a main PA, a delay speaker, a fill speaker, or for portable audio, it delivers outstanding performance that meets the standards of demanding sound environments.
Ideal for:
-
Live sound reinforcement
-
Conference and corporate audio
-
Bars, lounges, and clubs
-
Worship venues
-
Touring and mobile DJ systems
-
Installations requiring clean white aesthetics
