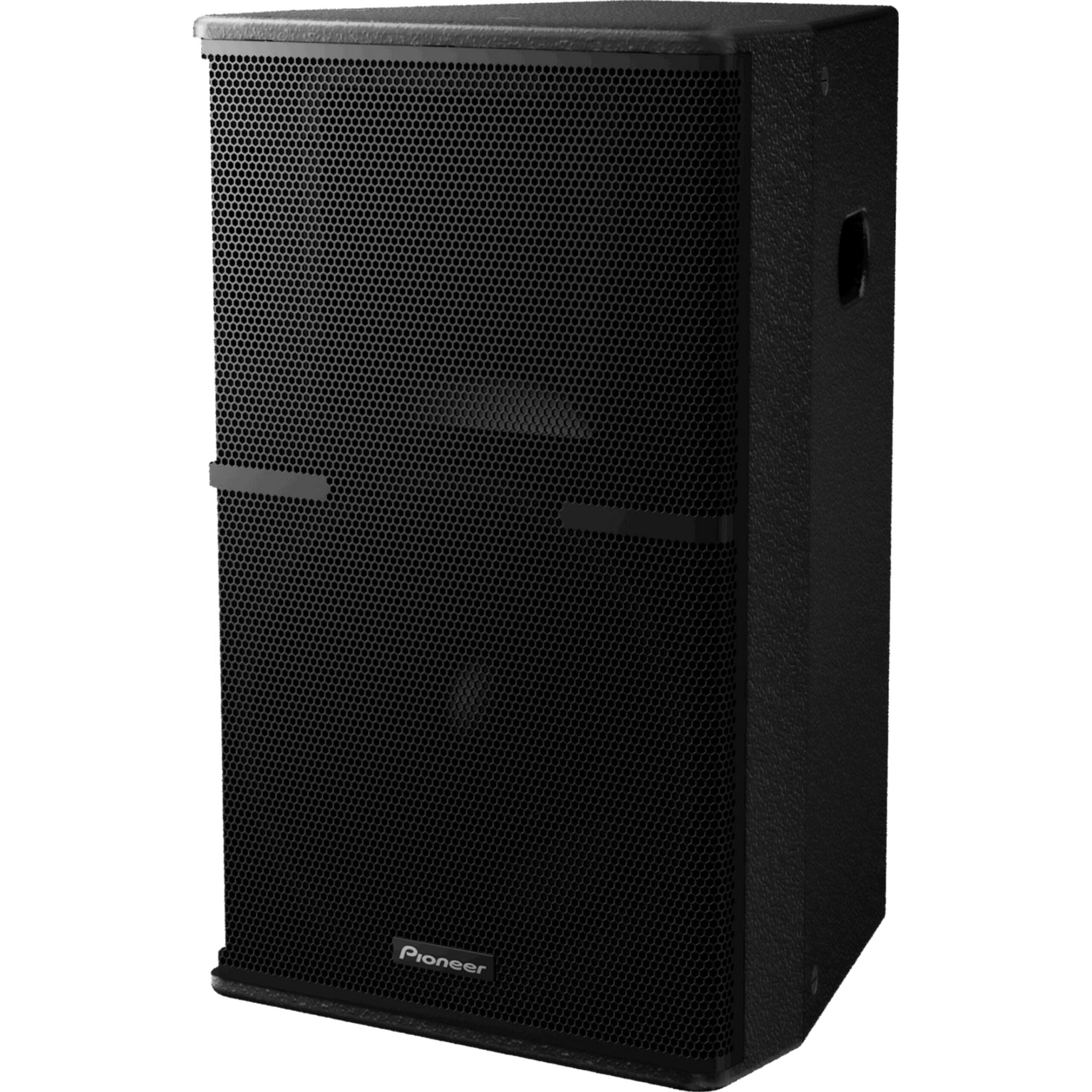

Pioneer Pro Audio XY-152 – 15-Inch Two-Way Full-Range Loudspeaker (Black)

Product Page: https://avlsgears.com
More Audio Gear: https://avlsgears.com/blog

The Pioneer Pro Audio XY-152 is a high-performance 15-inch two-way full-range loudspeaker engineered for professional environments that demand exceptional clarity, power, and durability. Designed for both fixed installations and mobile setups, it delivers precise sound reproduction, wide coverage, and long-lasting reliability.

Key Features of Pioneer Pro Audio XY-152 15-Inch Two-Way Full-Range Loudspeaker, Black

• 15-inch LF driver + 1.4-inch compression HF driver for powerful, balanced full-range sound.

• Passive crossover board with isolated cooling zones ensures safe and continuous operation—even in demanding conditions.

• 90° × 60° wide dispersion with a rotatable horn for flexible horizontal or vertical mounting.

• Designed for fixed and mobile applications, offering multiple flying and mounting options.

• Top hats included for fast and easy setup.

• NL4 INPUT and LINK OUT as standard connectivity.

• Premium birch plywood enclosure for superior acoustic performance and long-term durability.

• Impact-resistant textured finish suitable for heavy-duty professional use.

More details: https://avlsgears.com

Technical Specifications

General

• Enclosure Type: Two-way passive, reflex-loaded

• Enclosure Material: 15 mm birch plywood

• Finish: Impact-resistant black semi-matt textured

• Grille: Hex punched steel

Rigging & Hardware

• 8 × M10 threaded mounting points (4 top / 4 bottom)

• 3 × M10 threaded rear mounting points

• 4 × M10 side mounting points (2 per side)

• 4 × M8 threaded points for wall mount bracket

• 2 × flush handles (left and right)

• 1 × 35 mm polemount socket

• Accessories: Polemount socket cover (-W model only)

Drivers

• LF: 15-inch (380 mm) neodymium cone

• HF: 1.4-inch (36 mm) exit neodymium compression driver

Performance

• Frequency Response: 50 Hz – 20 kHz

• Sensitivity (1W/1m): 98 dB

• Nominal Impedance: 8 Ω

• Power Handling:

  • 650 W RMS

  • 1300 W Program

• Maximum SPL:

  • 126 dB continuous

  • 132 dB peak

• Dispersion: 90° H × 60° V (rotatable horn)

Connectivity

• 2 × Neutrik SpeakON NL4 connectors

Dimensions & Weight

• Size (W × H × D): 440 × 715 × 444 mm
  (17.3 × 28.1 × 17.5 inches)

• Weight: 29 kg (63.9 lbs)

Recommended Amplifiers

• Recommended: K3DSP

• Minimum: M30DHDSP
