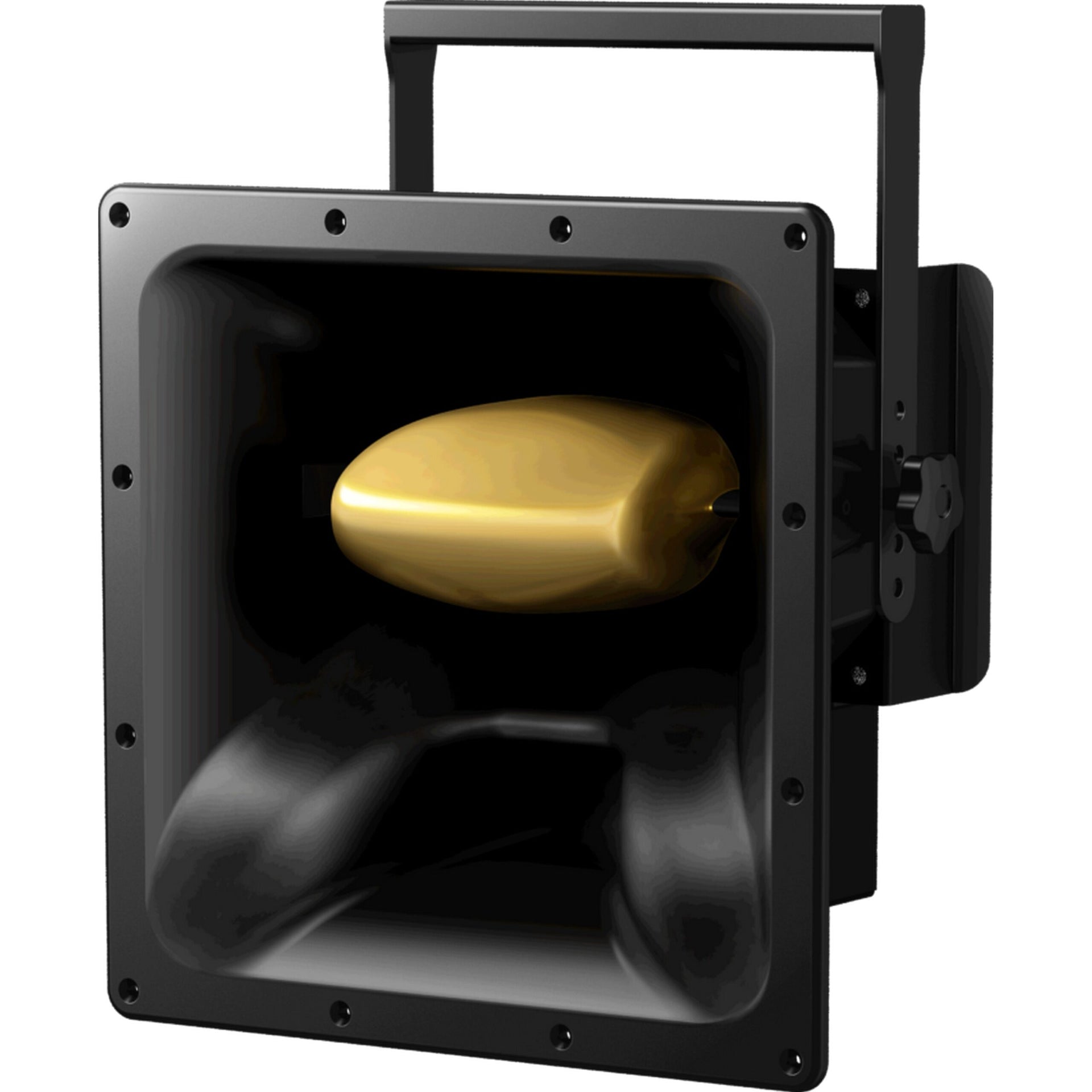

Pioneer Pro Audio XY-2 8-Inch 2-Way Passive Mid-High Loudspeaker

Overview

The Pioneer Pro Audio XY-2 is a precision-engineered 8-inch 2-way passive mid-high loudspeaker designed for large-scale venues, stadiums, touring systems, and professional entertainment environments. As the dedicated mid-high section of the flagship XY-3B system, it delivers powerful projection, tight dispersion control, and exceptional clarity—making it suitable for PA applications, DJ booth monitoring, down-fill reinforcement, and high-impact sound installations.
For industry tips, setup ideas, and equipment insights, visit the AVLS Gears Blog.

Moulded Bi-Horn for Superior Accuracy

To achieve precise sound blending, the XY-2 uses a specially engineered moulded Bi-horn. The 8-inch mid driver and 1-inch compression driver sit at perfectly aligned depths inside a shared waveguide. Because of this alignment, the speaker reduces phase cancellation around the crossover frequency and produces a smoother, more coherent sound.

Additionally, the curved waveguide offers accurate dispersion at 50° horizontal and 35° vertical, ensuring that sound reaches the intended audience area with high SPL while preventing unwanted reflections outside the coverage zone.

X-Phase System for Maximum Output

Pioneer Pro Audio integrates its advanced X-Phase System into the XY-2, ensuring that every sound wave exits in perfect alignment. The gold X-Phase plug features a convex design that channels sound through narrow, fan-shaped slits. As a result, the driver produces stronger projection, reduced cancellation, and high-intensity output suitable for long-throw applications.
Learn more about our mission, services, and global audio solutions by visiting About AVLS Gears.

Designed for Large Venues and Professional Systems

Because of its high efficiency and engineered dispersion, the XY-2 performs exceptionally well in:

• Stadium sound reinforcement

• Arena and large hall installations

• Concert PA systems

• Nightclubs and festival stages

• XY-3B cluster down-fill configurations

• DJ booth monitoring

It pairs perfectly with other models in the XY Series, especially when building scalable point-source arrays. Explore more professional loudspeakers in the AVLS Speakers Collection.

Availability in Europe

For customers across France and the EU, this model and other Pioneer Pro Audio equipment are also accessible through our trusted European platform:
👉 AVLS Paris

Technical Specifications

• Enclosure Type: 2-way mid-high loudspeaker

• Enclosure Material: Polyurethane

• Drivers:

  • MF: 8-inch neodymium cone driver

  • HF: 1-inch exit neodymium compression driver

• Power Handling:

  • 200 W RMS

  • 400 W Program

• AES Rating: 130 dB continuous, 136 dB peak

• Frequency Response: 170 Hz – 17 kHz

• Sensitivity (1W/1m): 107 dB

• Nominal Impedance: 8 Ω

• Dispersion: 50° H × 35° V

• Connectors: 2 × Neutrik speakON NL4

• Dimensions (W × H × D): 480 × 480 × 376 mm

• Weight: 13.5 kg
