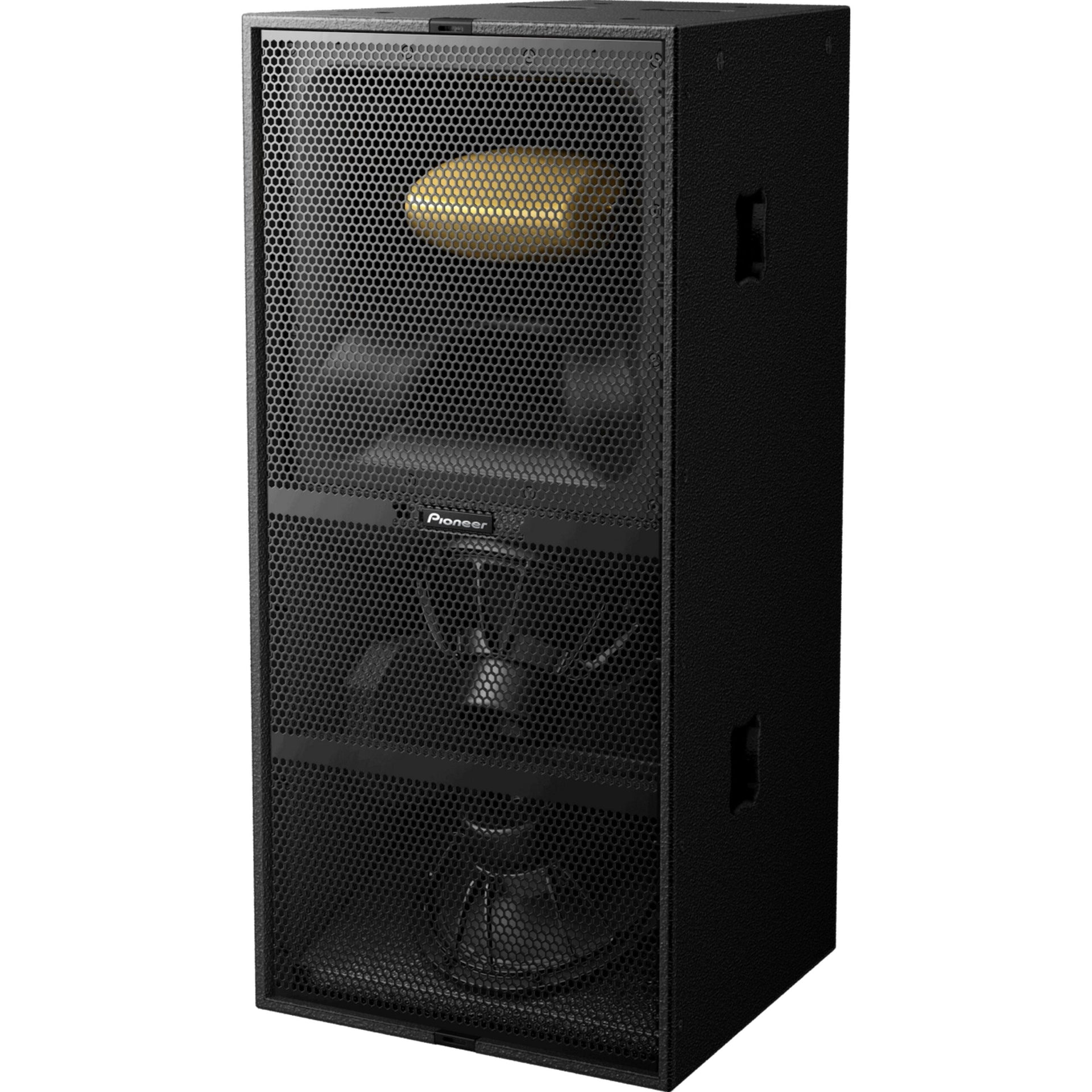

Pioneer Pro Audio XY-3B Dual 12-Inch 3-Way Hybrid Loaded Bi-Amp Loudspeaker

Overview

The Pioneer Pro Audio XY-3B is a high-performance 3-way hybrid loaded bi-amp loudspeaker designed for large-capacity venues, stadiums, outdoor events, touring systems, and professional PA environments. Built to deliver maximum impact with exceptional clarity, it combines dual 12-inch low-mid drivers with an advanced mid/high section powered by Pioneer Pro Audio’s X-Phase system and moulded Bi-horn waveguide.
For more professional audio insights and product updates, visit the AVLS Gears Blog.

Mid/High Precision with X-Phase and Bi-Horn Technology

Advanced Mid-Range and High-Frequency Clarity

The XY-3B features an 8-inch cone driver dedicated to the mid-range band, delivering exceptional precision and detail. Alongside it, a 1-inch compression driver handles the high frequencies, producing crystal-clear output that blends naturally with the mids.

Moulded Bi-Horn Design for Perfect Alignment

Both the mid and high drivers are integrated into a moulded Bi-horn waveguide. Their depth alignment inside the horn minimizes phase cancellations around the crossover point. As a result, the XY-3B provides seamless tonal balance, higher output, and improved coherency compared to conventional separated-horn designs.

In addition, the curved waveguide ensures 50° horizontal × 35° vertical dispersion, focusing sound accurately within the target zone while reducing unwanted spill.

X-Phase System for Maximum Projection

The gold X-Phase plug sits at the heart of the XY-3B’s mid-high section. Its convex shape funnels sound waves through fan-shaped slits, forcing them to exit perfectly aligned. This increases sound projection over long distances, boosts SPL output, and minimizes cancellation between the drivers.
To learn more about our mission and expertise in professional audio, visit About AVLS Gears.

Hybrid Low-Mid Section for Tight, Controlled Power

The XY-3B incorporates a dual 12-inch hybrid chamber engineered to produce tight, punchy low-mid frequencies.
Key performance benefits include:

• Fast and responsive cone movement for chest-punching low mids

• Water-resistant driver coating on both sides for safe outdoor use

• Added structural stiffness without relying on heavier cone materials

• Natural tightness and speed, ideal for high-energy environments

This design makes the XY-3B a strong choice for festivals, stadiums, touring rigs, and large-scale indoor installations.

Rigging, Touring, and Deployment Flexibility

The XY-3B is engineered for real-world use, making it a true tour-ready loudspeaker.

Rigging Options:

• Compatible flying hardware

• Safe and secure suspension options

• Multiple ground-stacking configurations for flexible setups

Tour Efficiency:

• Optimized enclosure shape for efficient truck loading

• Stackable two-high and four-wide when paired with the XY-3 wheel board

• Highly durable birch plywood construction for long-term reliability

For more high-performance speakers and system components, browse the AVLS Speakers Collection.
For EU-based users, access premium audio equipment directly through AVLS Paris.

Technical Specifications

• Enclosure Type: 3-way bi-amp loudspeaker

• Enclosure Material: 15 mm birch plywood

• Drivers:

  • Low-Mid: 2 × 12-inch neodymium cone drivers

  • Mid: 8-inch neodymium cone driver

  • High: 1-inch exit neodymium compression driver

• Power Handling:

  • Low-Mid: 1200 W RMS / 2400 W Program

  • MHF Section: 200 W RMS / 400 W Program

• AES Rating:

  • LF: 133 dB continuous / 139 dB peak

  • MHF: 130 dB continuous / 136 dB peak

• Frequency Response: 55 Hz – 17 kHz

• Sensitivity (1W/1m):

  • LF: 102 dB

  • MHF: 107 dB

• Nominal Impedance:

  • LF: 4 Ω

  • MHF: 8 Ω

• Connections: 2 × Neutrik speakON NL4

• Dispersion: 50° H × 35° V

• Dimensions (W × H × D): 530 × 1080 × 540 mm

• Weight: 57.6 kg
